Clutch Pedal Position (CPP) Switch

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

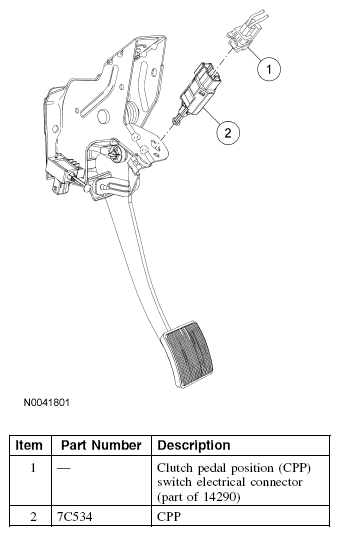

Fig 1: Identifying Clutch Pedal Position (CPP) Switch Components
G04681374Courtesy of FORD MOTOR CO.
  1. Disconnect the clutch pedal position (CPP) switch electrical connector.
  2. Rotate the CPP switch clockwise and remove the CPP switch.
  3. To install, reverse the removal procedure.
