Cooling Fan Motor and Shroud

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

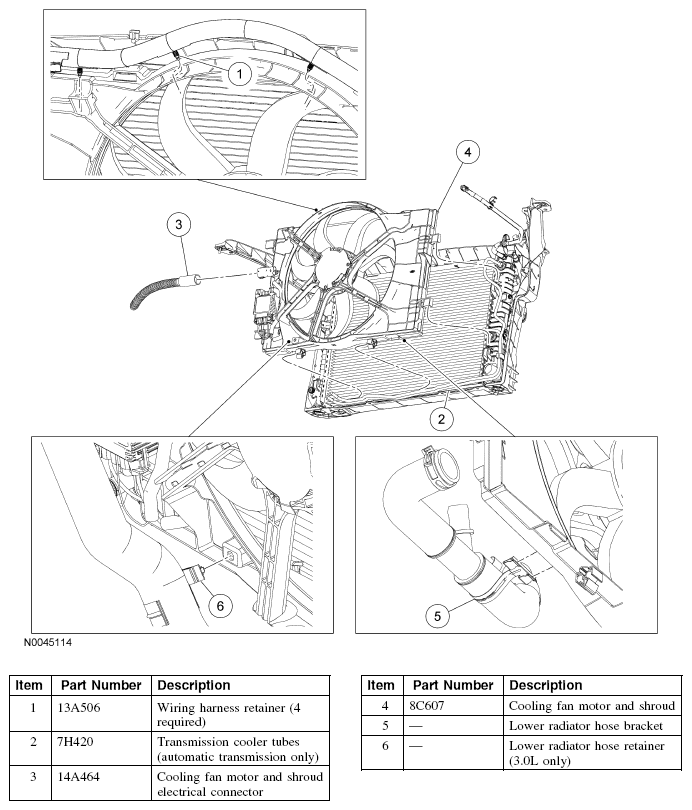

Fig 1: Identifying Cooling Fan Motor And Shroud Components

Courtesy of FORD MOTOR CO.

All vehicles

With vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

2.3L engines

Remove the generator air inlet duct.

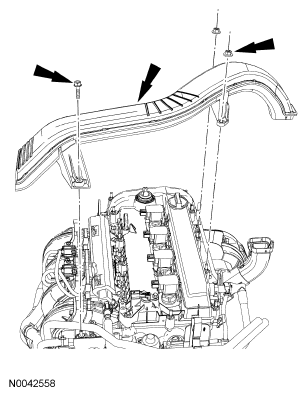

Fig 2: Locating Generator Air Inlet Duct, Nuts And Bolt
Courtesy of FORD MOTOR CO.

All vehicles

If equipped, detach the 3 block heater wiring retainers from the cooling fan motor and shroud and position aside.

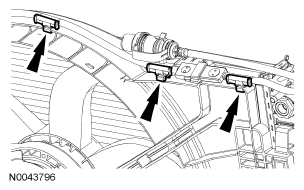

Fig 3: Locating Block Heater Wiring Retainers
Courtesy of FORD MOTOR CO.
Remove the splash shield.

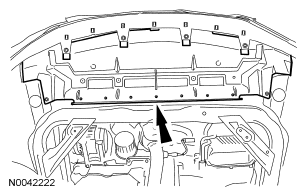

Fig 4: Locating Splash Shield
Courtesy of FORD MOTOR CO.
Detach the lower radiator hose bracket from the cooling fan motor and shroud.

Fig 5: Locating Lower Radiator Hose Bracket
Courtesy of FORD MOTOR CO.

3.0L engines

Detach the retainer on the lower radiator hose from the cooling fan motor and shroud.

Automatic transmission vehicles

Detach the transmission cooler tubes from the cooling fan motor and shroud.

All vehicles

Detach the 4 wiring harness retainers and position the harness aside.
Disconnect the cooling fan electrical connector.
Release the 2 tabs and remove the cooling fan motor and shroud.

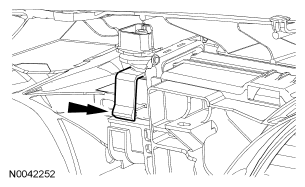

Fig 6: Locating Cooling Fan Motor And Shroud Tab
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
