Coolant Pump - 3.0L: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) CHART

G04681241Courtesy of FORD MOTOR CO.
Service Set, Water Pump Pulley
303-S455 (T94P-6312-AH)
G04681242Courtesy of FORD MOTOR CO.
Remover, Crankshaft Vibration Damper
303-009 (T58P-6316-D)
G04681243Courtesy of FORD MOTOR CO.
Installer, Power Steering Pump Pulley (Nut only)
211-185 (T91P-3A733-A)

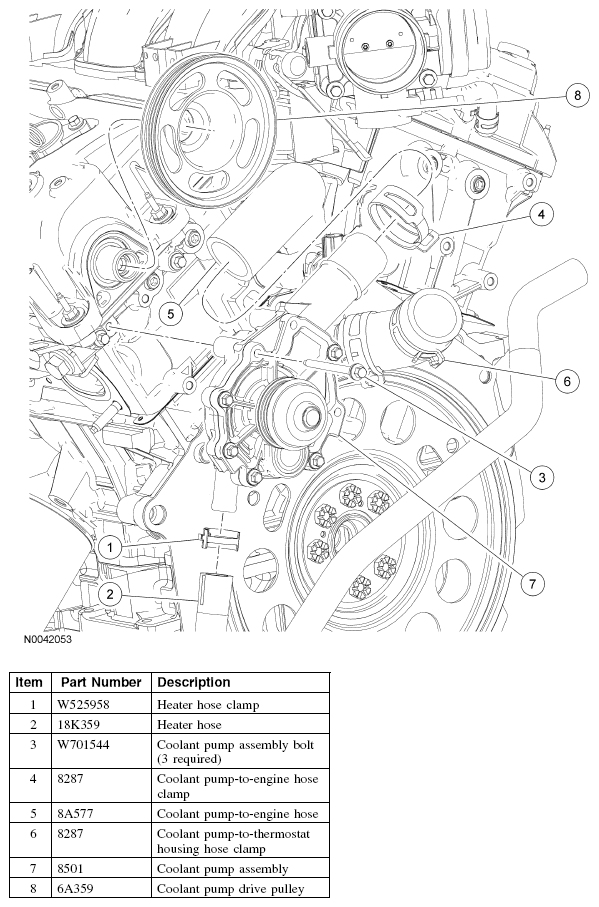

Fig 1: Identifying Coolant Pump Components (3.0L)
G04681244Courtesy of FORD MOTOR CO.
