Wheel Bearing and Wheel Hub: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04679607Courtesy of FORD MOTOR CO.
Pinion Bearing Cone Remover
205-D002 (D79L-4621-A) or equivalent
G04679608Courtesy of FORD MOTOR CO.
Installer, Wheel Hub Bearing Cup
205-147
G04679609Courtesy of FORD MOTOR CO.
Remover/Installer, Wheel Hub Cup
204-020
G04679610Courtesy of FORD MOTOR CO.
Stop Plate
204-117

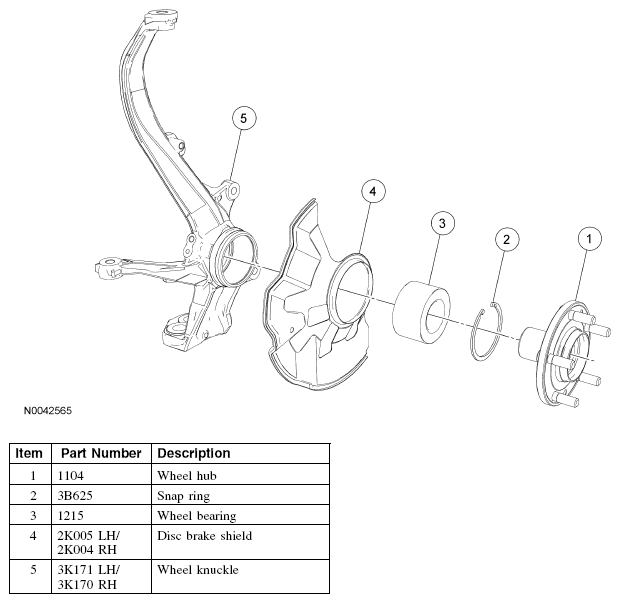

Fig 1: Identifying Wheel Knuckle, Disc Brake Shield And Wheel Hub
G04679611Courtesy of FORD MOTOR CO.
