Halfshaft - RH: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front tire and wheel. For additional information, refer to WHEELS & TIRES .
  2. NOTE: Apply the brake to keep the halfshaft from rotating.
    Fig 1: Locating Front Wheel Hub Nut
    G04679739Courtesy of FORD MOTOR CO.
  3. Remove and discard the front wheel hub nut.
  4. Remove the front and rear lower control arm nuts.
    Fig 2: Locating Front And Rear Lower Control Arm Nuts
    G04679740Courtesy of FORD MOTOR CO.
  5. NOTE: Once pressure is applied to the ball joint with the special tool, it may be necessary to tap the wheel knuckle at the ball joint area to separate the ball joint from the wheel knuckle.
    Fig 3: Identifying Special Tool
    G04679741Courtesy of FORD MOTOR CO.
  6. Using the special tool, disconnect the 2 ball joints.
  7. Using the special tool, separate the half shaft from the wheel hub.
    Fig 4: Identifying Special Tool
    G04679742Courtesy of FORD MOTOR CO.
  8. CAUTION: When the lower ball joint is separated from the wheel knuckle, the lower arm may strike the outer constant velocity (CV) joint boot with enough force to damage the boot clamp. This will result in a loss of grease from the outer CV joint. Place a block of wood, or similar item, between the lower arm and the outer CV joint to prevent the lower arm from striking the outer CV joint.
    Fig 5: Locating Damper Fork Bolt
    G04679743Courtesy of FORD MOTOR CO.
  9. Remove the damper fork bolt and flagnut connecting the damper fork to the lower control arm.
  10. Remove the brake caliper hose bolt.
    Fig 6: Locating Brake Caliper Hose Bolt
    G04679744Courtesy of FORD MOTOR CO.
  11. NOTE: Support the knuckle with a suitable jackstand.
    Fig 7: Locating Jackstand
    G04679745Courtesy of FORD MOTOR CO.
  12. Pull the knuckle outboard and rotate it toward the rear of the vehicle.
  13. Remove the lower control arm-to-subframe bolt. Remove the lower control arm.
    Fig 8: Locating Lower Control Arm-To-Subframe Bolt
    G04679746Courtesy of FORD MOTOR CO.
  14. Use a brass drift to strike the right side halfshaft in the indicated area and separate the RH halfshaft from the intermediate shaft.
    Fig 9: Locating Brass Drift
    G04679747Courtesy of FORD MOTOR CO.
  15. Pull the strut forward, remove the halfshaft from the damper fork. Position the halfshaft in front of the damper fork towards the front of the vehicle.

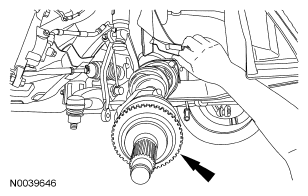

    Fig 10: Locating Strut
    G04679748Courtesy of FORD MOTOR CO.
  16. Remove and discard the circlip from the intermediate shaft.
    Fig 11: Locating Halfshaft Circlip
    G03972275Courtesy of FORD MOTOR CO.
