Halfshaft - LH: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S) DESCRIPTION

G04679755Courtesy of FORD MOTOR CO.
Slide Hammer
100-001 (T50T-100-A)
G04679756Courtesy of FORD MOTOR CO.
Halfshaft Remover
205-832
G04679757Courtesy of FORD MOTOR CO.
Separator, Balljoint
204-592
G04679758Courtesy of FORD MOTOR CO.
Remover, Front Wheel Hub
205-D070 (D93P-1175-B) or equivalent
G04679759Courtesy of FORD MOTOR CO.
Installer, Halfshaft
204-161 (T97P-1175-A)
G04679760Courtesy of FORD MOTOR CO.
Adapter for
204-592 204-592/1

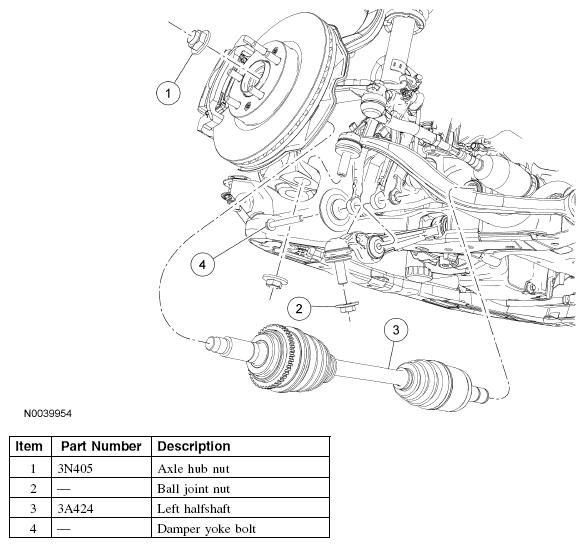

Fig 1: Identifying Halfshaft - LH Components
G04679761Courtesy of FORD MOTOR CO.
