Wheel Bearing Check

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
    • Make sure the wheels are in a straight forward position.
    2. NOTE: Make sure the wheel rotates freely and that the brake pads are retracted sufficiently to allow free movement of the tire and wheel assembly.
    Fig 1: Checking Wheel Bearings For Roughness
    G04679589Courtesy of FORD MOTOR CO.
  2. Spin the tire by hand to check the wheel bearings for roughness.
  3. Grip each front tire at the top and bottom and move the wheel inward and outward while lifting the weight of the tire off the front wheel bearing.
    Fig 2: Checking Front Wheel Bearing
    G04679590Courtesy of FORD MOTOR CO.
  4. If the tire and wheel (hub) is loose on the spindle, does not rotate freely, or has a rough feeling when spun, carry out one of the following:
    1. On vehicles with inner and outer bearings, inspect the bearings and cups for wear or damage. Adjust or install new bearings and cups as necessary.
    2. On vehicles with one sealed bearing, install a new wheel hub. For additional information, refer to FRONT SUSPENSION .

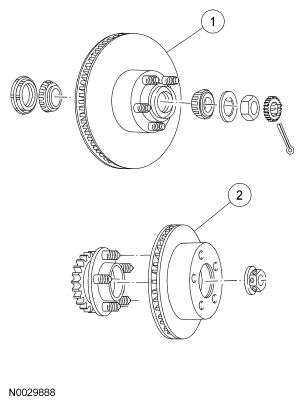

      Fig 3: Identifying Wheel (Hub) Components
      G04679591Courtesy of FORD MOTOR CO.
