Noise, Vibration and Harshness (NVH): Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S) CHART

Courtesy of FORD MOTOR CO.	ChassisEAR 107-R2102 or Equivalent
Courtesy of FORD MOTOR CO.	Electronic Vibration Analyzer 100-F027 (014-00344) or Equivalent
Courtesy of FORD MOTOR CO.	EngineEAR 107-R2100 or Equivalent
Courtesy of FORD MOTOR CO.	Ultrasonic Leak Detector 134-R0135 or Equivalent

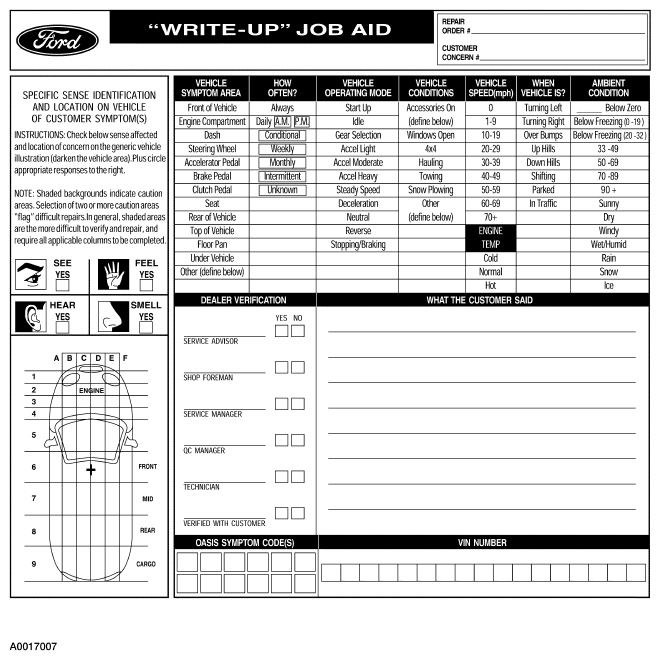

To assist the service advisor and the technician, a Write-up Job Aid and an NVH Diagnostic Guide are included with this material. The Write-up Job Aid serves as a place to record all important symptom information. The NVH Diagnostic Guide serves as a place to record information reported on the Write-up Job Aid as well as data from the testing to be carried out.

To begin a successful diagnosis, fill out the NVH Diagnostic Guide, record the reported findings, then proceed to each of the numbered process steps to complete the diagnosis.

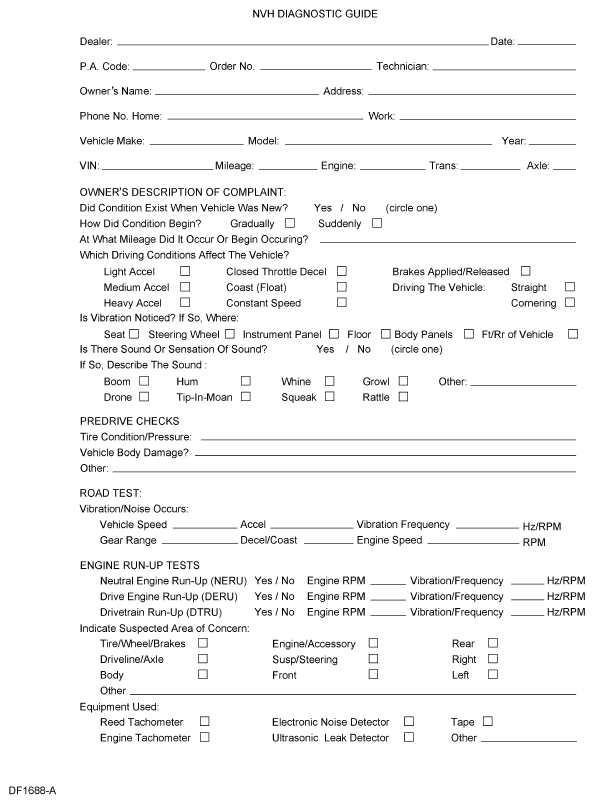

Fig 1: NVH Diagnostic Guide (1 Of 3)

Courtesy of FORD MOTOR CO.

Fig 2: NVH Diagnostic Guide (2 Of 3)

Courtesy of FORD MOTOR CO.

Fig 3: NVH Diagnostic Guide (3 Of 3)

Courtesy of FORD MOTOR CO.
