Stabilizer Bar and Link: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown, RH similar.

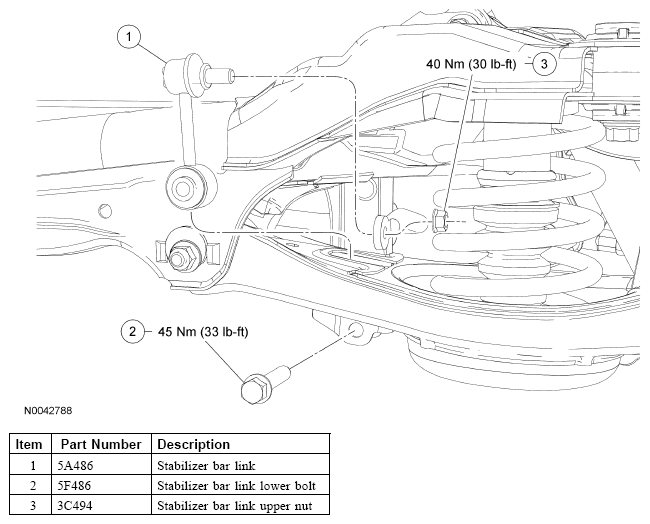

Fig 1: Identifying Stabilizer Bar And Link, Stabilizer Bar And Link Lower Bolt
G04679719Courtesy of FORD MOTOR CO.

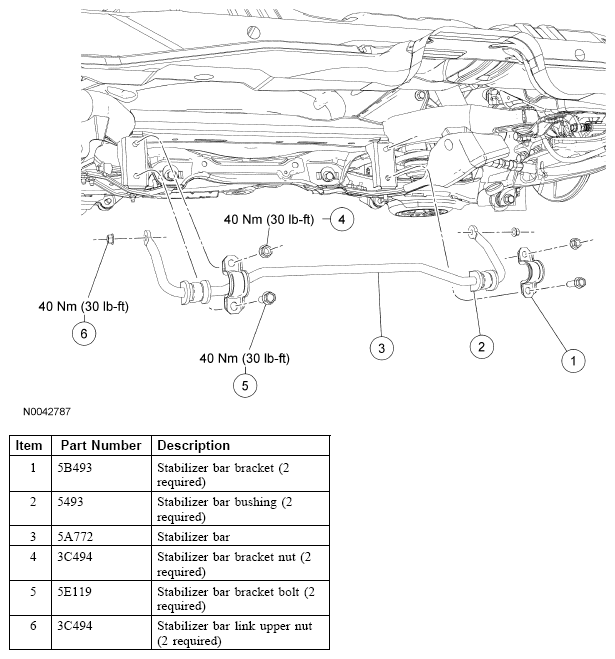

Fig 2: Identifying Stabilizer Bar Bracket, Stabilizer Bar Bushing And Stabilizer Bar Bracket Bolt
G04679720Courtesy of FORD MOTOR CO.
