Catalytic Converter - 2.3L PZEV Manifold: Installation

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: If the warpage is greater than 0.76 mm (0.03 in), install a new catalytic converter manifold.
  1. Inspect the catalytic converter manifold for warpage across the manifold flange area.
  2. Install the 7 new catalytic converter manifold studs.
    • Tighten to 17 Nm (13 lb-ft).
  3. Position a new catalytic converter manifold gasket on the studs.
  4. CAUTION: Failure to tighten the catalytic converter manifold nuts to specification before installing the converter bracket bolts will cause the converter to develop an exhaust leak.
    CAUTION: Failure to tighten the catalytic converter manifold nuts to specification a second time will cause the converter to develop an exhaust leak.
    NOTE: Make sure to tighten the nuts in the sequence in 2 stages.
  5. Position the catalytic converter manifold and tighten the 7 new nuts in the sequence shown, in 2 stages.
    • Stage 1: Tighten to 55 Nm (41 lb-ft).
    • Stage 2: Tighten to 55 Nm (41 lb-ft).
      Fig 1: Identifying Catalytic Converter Manifold Nuts Tightening Sequence
      G04682367Courtesy of FORD MOTOR CO.
  6. NOTE: Apply anti-seize lubricant to the threads of the sensors before installation.
  7. If installing a new converter, install the HO2S and the 2 CMS using the special tool.
    • Tighten to 47 Nm (35 lb-ft).
      Fig 2: Identifying Special Oxygen Sensor Tool
      G03901976Courtesy of FORD MOTOR CO.
  8. Connect the secondary injection hose to the catalytic converter manifold.
    Fig 3: Locating Secondary Injection Hose
    G04682369Courtesy of FORD MOTOR CO.
  9. Tighten the 2 catalytic converter manifold bracket bolts.
    • Tighten to 20 Nm (15 lb-ft).
  10. Install the 2 catalytic converter manifold shield bracket bolts and the bracket.
    • Tighten to 20 Nm (15 lb-ft).
  11. Position the heat shield and install the 4 heat shield bolts.
    • Tighten to 10 Nm (89 lb-in).
  12. Install the 2 catalytic converter manifold-to-exhaust flexible pipe nuts.
    • Install a new gasket.
    • Tighten to 40 Nm (30 lb-ft).
  13. Position the wiring harness bracket on the stud.
  14. Connect the HO2S and 2 CMS electrical connectors.
  15. Install the generator air inlet duct.

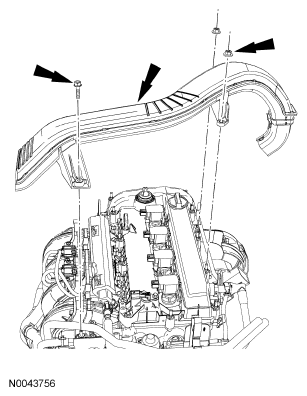

    Fig 4: Locating Generator Air Inlet Duct And Bolts
    G04682370Courtesy of FORD MOTOR CO.
