Subframe Bushings - Rear: Removal

WARNING: This page is about a different car, the 2006 Mercury Milan, 2006 Lincoln Zephyr, and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

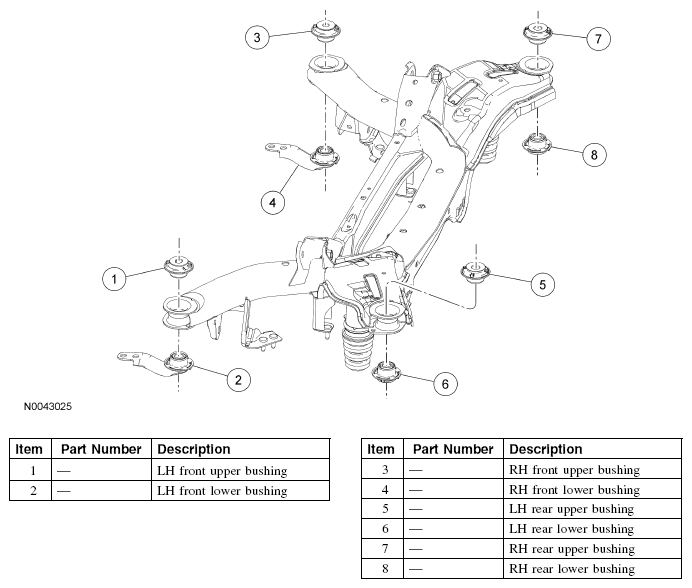

Fig 1: Identifying Subframe Bushings Remove/Install Components - Rear
G04684149Courtesy of FORD MOTOR CO.

    All bushings

  1. Remove the rear subframe. For additional information, refer to SUBFRAME - REAR .

    2. Front bushings

    NOTE: Care must be used when removing the bushings from the subframe with a flat-blade screwdriver.
  2. Remove the rear subframe front lower bushings with a flat-blade screwdriver.
  3. Turn the subframe over.
  4. Remove the rear subframe front upper bushings with a flat-blade screwdriver.

    5. Rear bushings

  5. Remove the rear subframe lower bushings with a flat-blade screwdriver.
  6. Turn the subframe over.
  7. Remove the rear subframe upper bushings with a flat-blade screwdriver.
