Safety Belt Retractor - Rear, Center, Freestyle: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

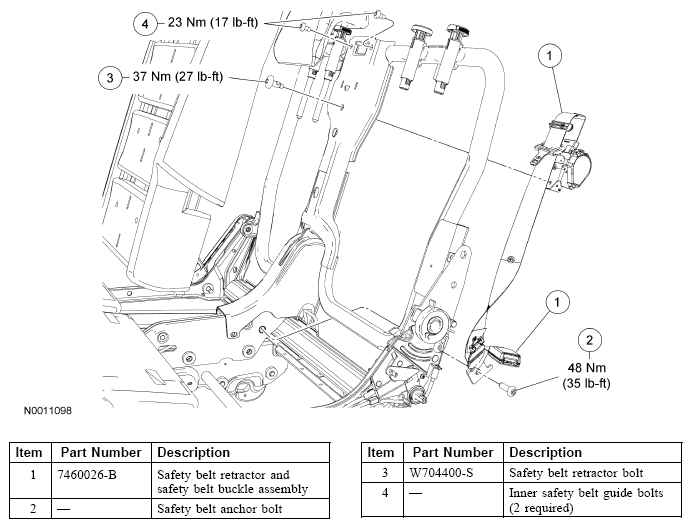

Fig 1: Safety Belt Retractor Replacement Components -- (Rear, Center & Freestyle) With Torque Specifications
G04659181Courtesy of FORD MOTOR CO.
