External Controls - Floor Shift

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

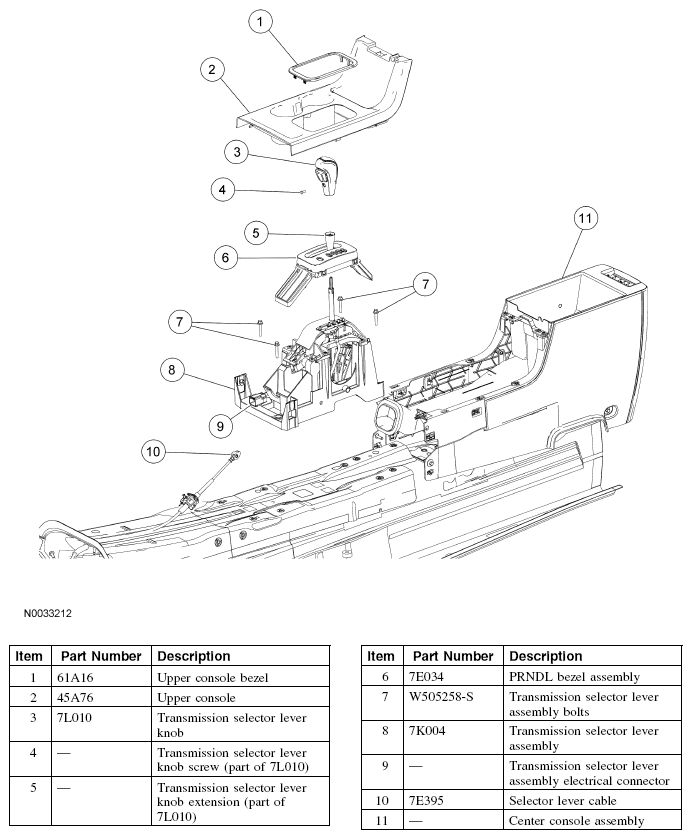

Fig 1: Exploded View Of External Controls Components - Floor Shift

Courtesy of FORD MOTOR CO.

The floor shifter assembly:

locks the transaxle range selector lever in the PARK position when the ignition switch is in the lock position.
requires the transaxle range selector lever to be in the PARK position to turn the ignition switch to the lock position.

The transaxle shift control linkage consists of:

a selector lever cable that connects the transaxle range selector lever to the floor shifter assembly.
a brake shift interlock actuator that is integral to the floor shifter assembly.
