Seat - Exploded View, Second Row, Five Hundred, Montego
WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
Five Hundred and Montego Rear Seat Backrest, Second Row, 60 Percent

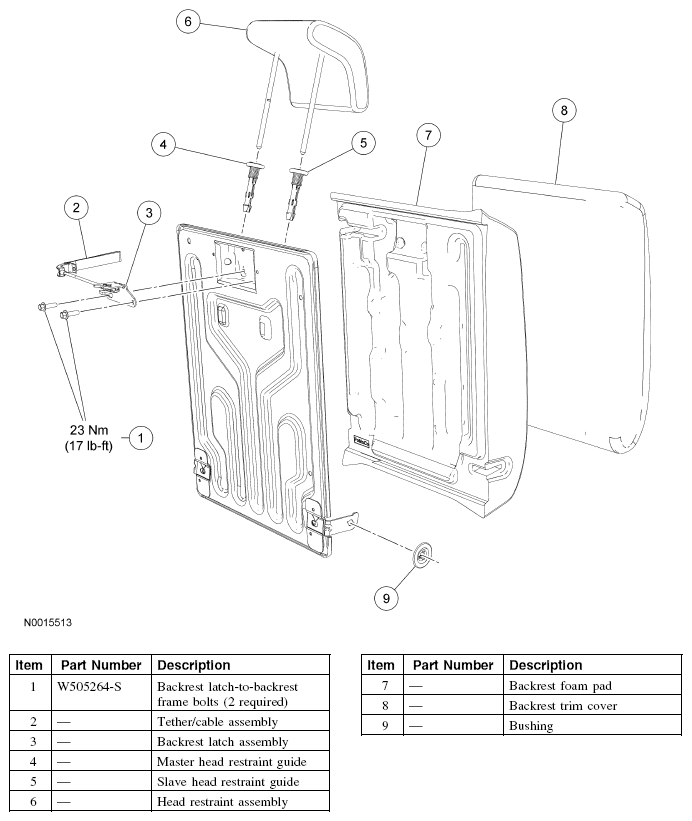

Fig 1: Five Hundred & Montego Rear Seat Backrest, Second Row, 60 Percent Replacement Components With Torque Specifications
Five Hundred and Montego Rear Seat Backrest, Second Row, 40 Percent

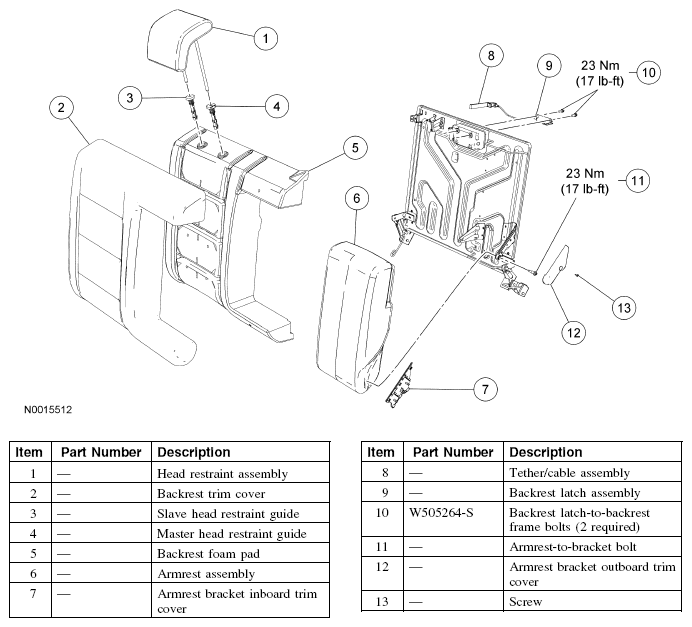

Fig 2: Five Hundred & Montego Rear Seat Backrest, Second Row, 40 Percent Replacement Components With Torque Specifications
- For additional information, REFER to the appropriate procedure.
