Disassembly and Assembly

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

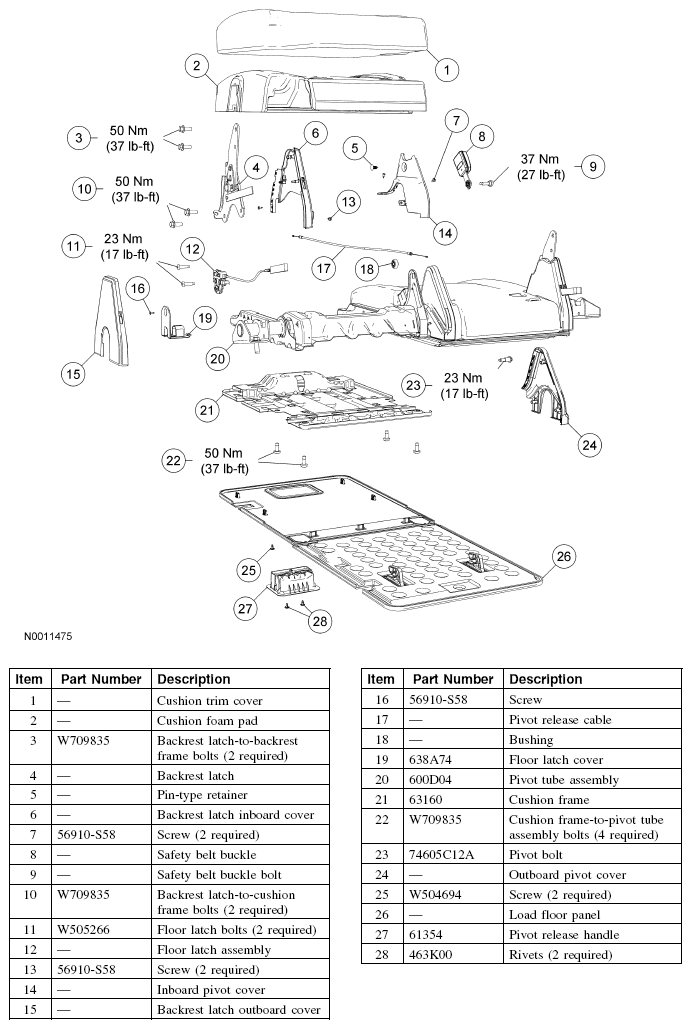

Fig 1: Seat Cushion Replacement Components With Torque Specifications - Third Row, 50 Percent
G04658839Courtesy of FORD MOTOR CO.
NOTE: LH 50 percent seat shown, RH similar.
  1. Remove the third row 50/50 seat. For additional information, REFER to SEAT - THIRD ROW .
  2. Remove the third row 50/50 backrest. For additional information, REFER to SEAT BACKREST - THIRD ROW, 50 PERCENT .
  3. Pull to release and remove the backrest latch outer cover.
    • Pull the release strap through the recliner outer cover.
    4. NOTE: If damaged when removed, install new rivets.
    Fig 2: Identifying Plastic Rivet
    G04658840Courtesy of FORD MOTOR CO.
  4. Remove the 2 rivets and pull the pivot release handle out of the pocket.
    • Using an appropriate tool, from under the rivet head, pry the rivet up.
      • When removing the rivet, make sure not to get under the insert or the rivet will not come out.
    • Another method that can be used to remove the plastic rivets is to drive a screw partially into the rivet head and pull the screw and rivet head out. This will require new plastic rivets be installed.
  5. Separate the pivot release cable and casing and remove the pivot release handle.
  6. Remove the 2 screws on each side at the bottom of the load floor panel.
  7. Pull out to release the retainers and remove the load floor panel.
  8. Remove the screw, release the tab and remove the floor latch cover.
  9. Release the cushion trim cover retainers from the 50 percent cushion frame, and remove the cushion trim cover and cushion foam pad.
    • On assembly, the LATCH and child safety seat tether anchor must be accessible through the cushion trim cover.
    Fig 3: Identifying Cushion Trim Cover Retainers From 50 Percent Cushion Frame
    G04658841Courtesy of FORD MOTOR CO.
  10. Remove the 2 screws, pin-type retainer and the inboard pivot cover.
  11. Remove the bushing.
  12. Remove the 2 screws and remove the backrest latch inboard cover.
    • Pull the release strap through the trim cover.
  13. Separate the floor latch cable from the backrest latch, remove 2 bolts and the floor latch assembly.
    • To install, tighten to 23 N.m (17 lb-ft).
  14. Remove 2 backrest latch-to-cushion frame bolts and the backrest latch.
    • To install, tighten to 50 N.m (37 lb-ft).
  15. Separate the pivot release cable and casing from the cushion pivot release lever and bracket. Remove the pivot release cable.
    Fig 4: Identifying Pivot Release Cable & Casing From Cushion Pivot
    G04658842Courtesy of FORD MOTOR CO.
  16. Remove 4 cushion frame-to-pivot tube assembly bolts and the cushion frame.
    • To install, tighten to 50 N.m (37 lb-ft).
  17. Remove the bolt and the safety belt buckle.
    • To install, tighten to 37 N.m (27 lb-ft).
  18. To assemble, reverse the disassembly procedure.
