Front Door Handles, Locks and Latches - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

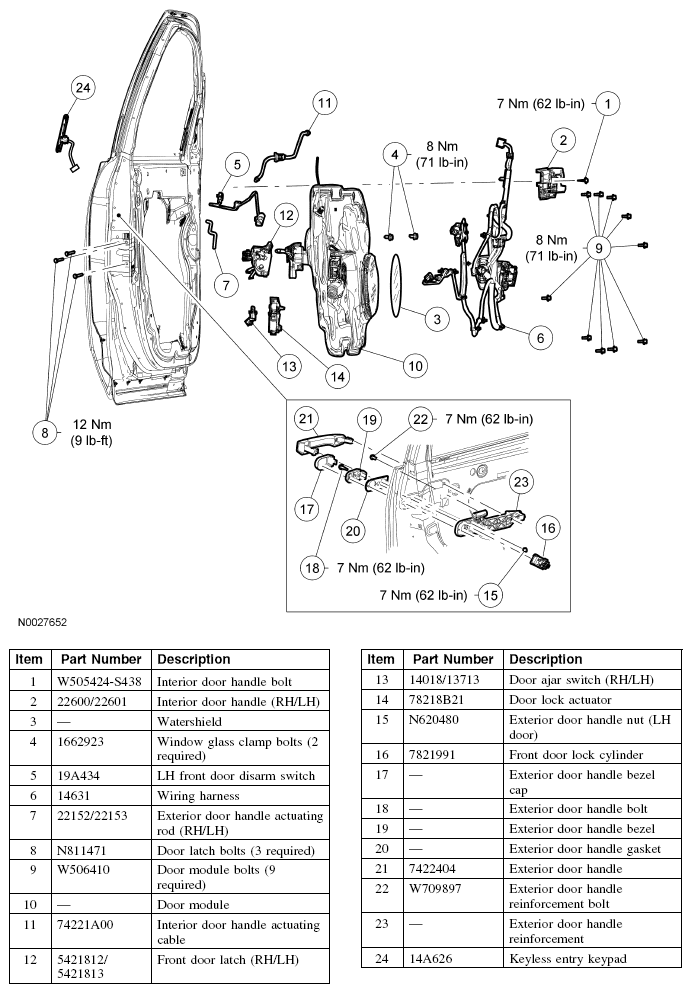

Fig 1: Exploded View Of Front Door Handles, Locks & Latches Components With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
