Manual Control Lever Shaft Seal: Removal

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: MERCON®, MERCON® V, MERCON® SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.
  1. Remove the battery and battery tray. For additional information, refer to REMOVAL AND INSTALLATION .
  2. Disconnect the shift cable end.

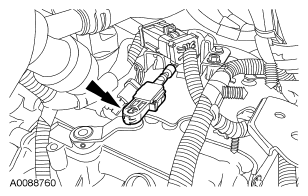

    Fig 1: Locating Shift Cable End
    G04656321Courtesy of FORD MOTOR CO.
  3. Remove and discard the roll pin, then remove the outer manual lever.

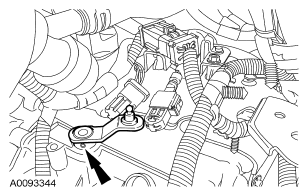

    Fig 2: Locating Roll Pin
    G04656322Courtesy of FORD MOTOR CO.
  4. Using a suitable pick, remove the selector shaft seal.
    Fig 3: Locating Selector Shaft Seal (1 Of 2)
    G04656323Courtesy of FORD MOTOR CO.
