Manual Control Lever Shaft Seal: Installation

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

Position the new seal in place.

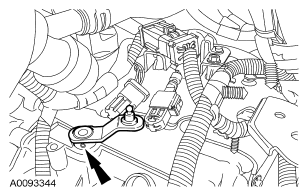

Fig 1: Locating Selector Shaft Seal (2 Of 2)
Courtesy of FORD MOTOR CO.
Using the special tool, install a new selector shaft seal.

Fig 2: Identifying Special Tool (307-538)
Courtesy of FORD MOTOR CO.
Position the outer manual lever over the manual shaft. Install a new roll pin.

Fig 3: Locating Roll Pin
Courtesy of FORD MOTOR CO.
Connect the shift cable end.

Fig 4: Locating Shift Cable End
Courtesy of FORD MOTOR CO.
Install the battery tray and battery. For additional information, refer to REMOVAL AND INSTALLATION .
If required, top off the transaxle with clean continuously variable transaxle (CVT) transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle. For additional information, refer to TRANSMISSION FLUID LEVEL CHECK AND SETTING .
