Torque Converter Housing, Reverse Clutch and Pump Assembly - Disassembly: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Slide Hammer 100-001 (T50T-100-A)
Courtesy of FORD MOTOR CO.	Remover, Transfer Case Bearing Cup 308-125 (T87P-7120-D)
Courtesy of FORD MOTOR CO.	Remover and Installer, Stator Needle Bearing 307-540 (includes 307-540/1 and 307-540/2)
Courtesy of FORD MOTOR CO.	Piston Spring Compressor 307-525
Courtesy of FORD MOTOR CO.	Remover, Differential Bearing Race 307-532
Courtesy of FORD MOTOR CO.	Actuator Pin 303-D012 D80L-100-H
Courtesy of FORD MOTOR CO.	Collet, 1-1/2 to 1-3/4 303-D023 D80L-100-U

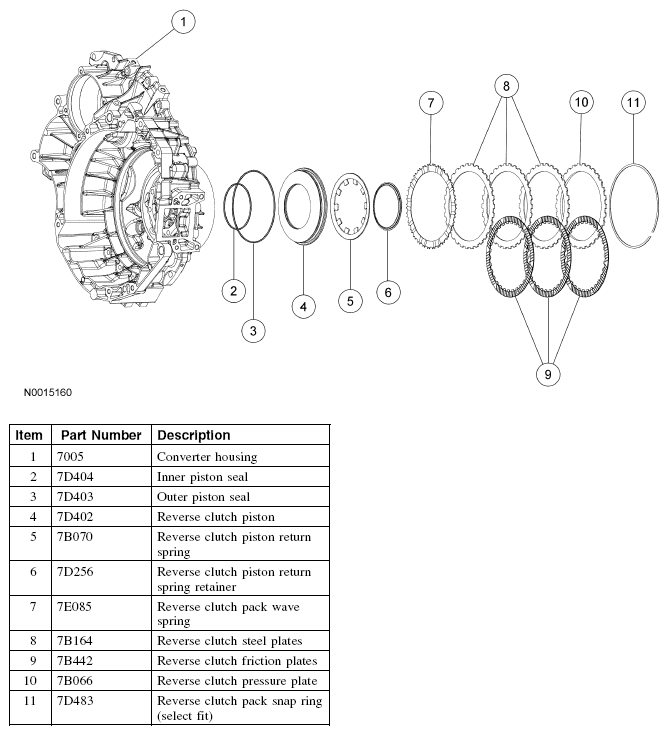

Fig 1: Exploded View Of Reverse Clutch Assembly Components

Courtesy of FORD MOTOR CO.
