Wheel Bearing and Wheel Hub: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.

Remover, Front Wheel Hub 205-D070 (D93P-1175-B) or equivalent

All Wheel Drive (AWD) Vehicles

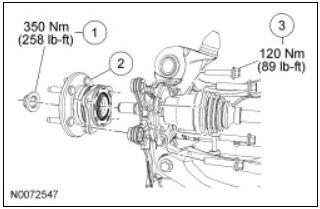

Fig 1: All Wheel Drive (AWD) Components With Torque Specifications

Item	Part Number	Description
1	W705967	Wheel hub nut
2	1104	Wheel bearing and wheel hub
3	W709182	Wheel bearing and wheel hub bolts (4 required)

Front Wheel Drive (AWD) Vehicles

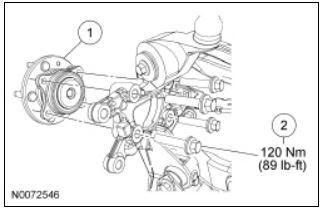

Fig 2: Front Wheel Drive (AWD) Components With Torque Specifications

Item	Part Number	Description
1	1104	Wheel bearing and wheel hub
2	W709182	Wheel bearing and wheel hub bolts (4 required)
