Rear Suspension - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel drive (FWD) shown, all wheel drive (AWD) similar.

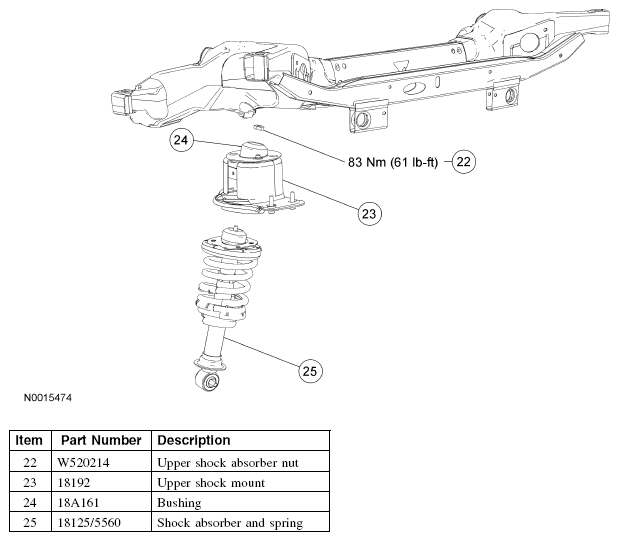

Fig 1: Exploded View Of Rear Suspension Components (1 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Front wheel drive (FWD) shown, all wheel drive (AWD) similar.

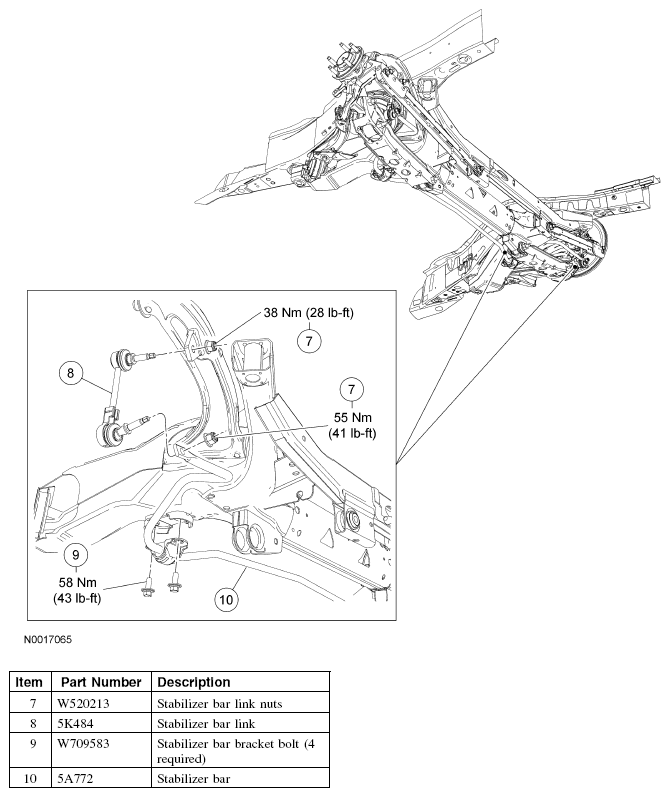

Fig 2: Exploded View Of Rear Suspension Components (2 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Front wheel drive (FWD) shown, all wheel drive (AWD) similar.

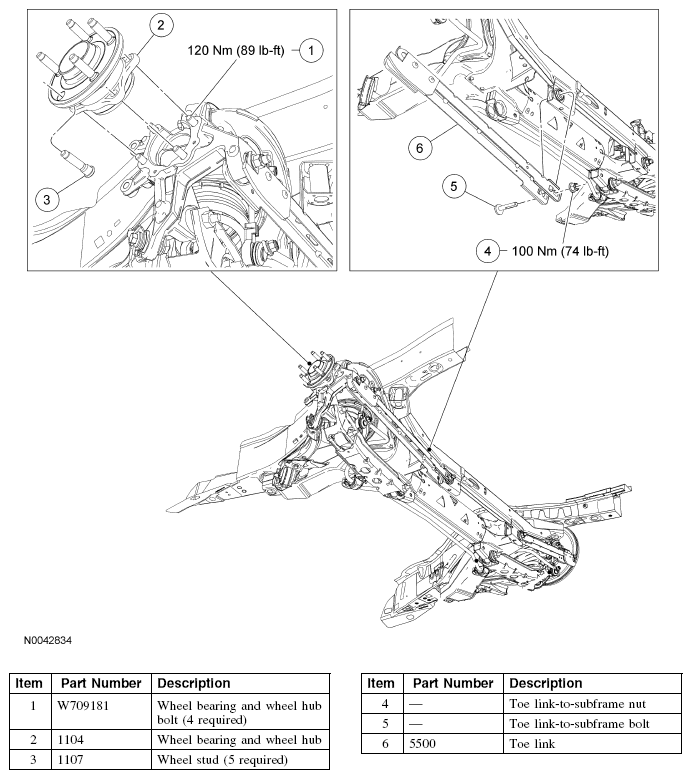

Fig 3: Exploded View Of Rear Suspension Components (3 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

NOTE: Front wheel drive (FWD) shown, all wheel drive (AWD) similar.

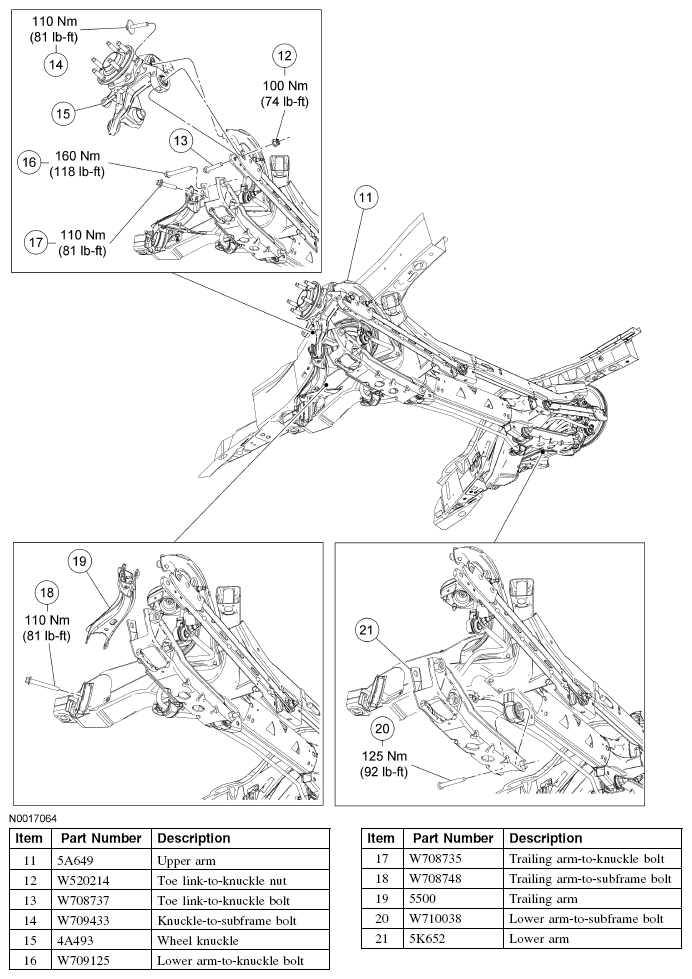

Fig 4: Exploded View Of Rear Suspension Components (4 Of 4) With Torque Specifications

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate procedure.
