Manual Control Lever Shaft and Seal: Installation

WARNING: This page is about a different car, the 2006 Mercury Montego and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install the manual control lever seal.
    Fig 1: Identify Special Tool
    G04657361Courtesy of FORD MOTOR CO.
  2. Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the OVERDRIVE position.
    Fig 2: Locating Manual Lever In Overdrive Position
    G04657362Courtesy of FORD MOTOR CO.
  3. Install the TCM.
    • Tighten to 24 N.m (18 lb-ft).
    Fig 3: Locating TCM
    G04657363Courtesy of FORD MOTOR CO.
  4. Install the manual control lever.
    Fig 4: Locating Manual Control Lever
    G04657364Courtesy of FORD MOTOR CO.
  5. Install the manual control lever nut.
    • Tighten to 12 N.m (9 lb-ft).
    Fig 5: Locating Manual Control Lever Nut
    G04657365Courtesy of FORD MOTOR CO.
  6. Connect the TCM electrical connector.
    Fig 6: Locating TCM Electrical Connector
    G04657366Courtesy of FORD MOTOR CO.
    7. CAUTION: Be careful not to bend the manual control lever when installing the shift cable.

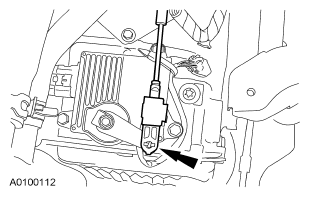

    Fig 7: Locating Shift Cable End
    G04657367Courtesy of FORD MOTOR CO.
  7. Connect the shift cable end.
  8. Install the air cleaner assembly. For additional information, refer to REMOVAL AND INSTALLATION .
  9. Connect the battery ground cable. For additional information, refer to REMOVAL AND INSTALLATION .
  10. Check for correct vehicle operation.
