External Sealing

WARNING: This page is about a different car, the 2006 Mercury Montego and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

The transaxle has the following parts to prevent external fluid leakage:

External Sealing

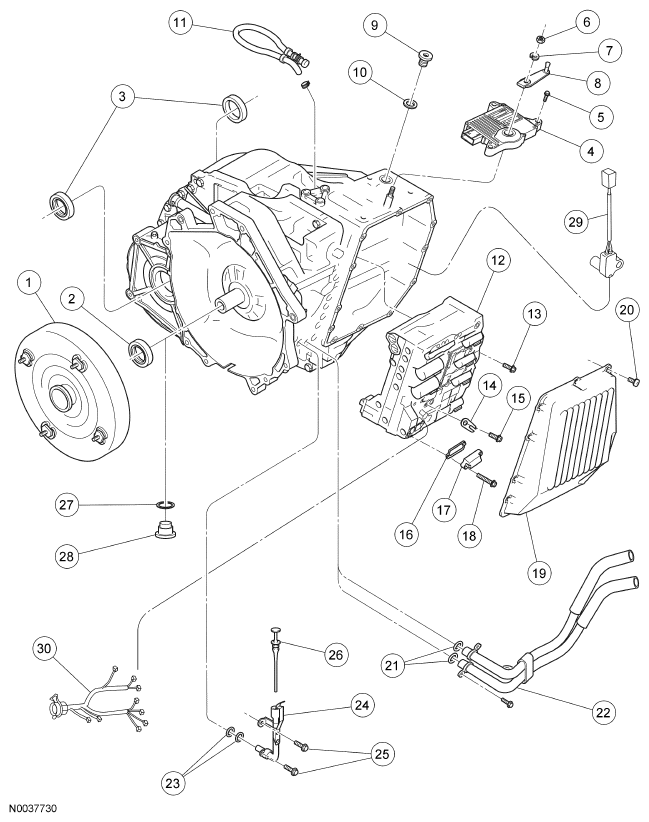

Fig 1: Identifying External Sealing Components
G04657284Courtesy of FORD MOTOR CO.

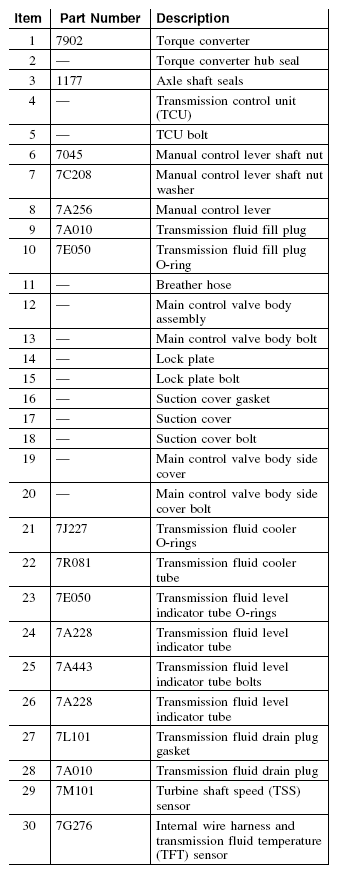

Fig 2: Identifying External Sealing Description
G04657285Courtesy of FORD MOTOR CO.
