Clutch and Clutch Field Coil: Notes

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL(S)

Courtesy of FORD MOTOR CO.	Remover, Compressor Pulley 412-001 (T71P-19703-B)
Courtesy of FORD MOTOR CO.	Holding Fixture, Compressor Clutch 412-103 (T95L-19703-AH)
Courtesy of FORD MOTOR CO.	Installer, A/C Compressor Pulley 412-109 (T97P-19D786-A)

MATERIAL

Item	Specification
Silicone Gasket and Sealant TA-30	WSE-M4G323-A4

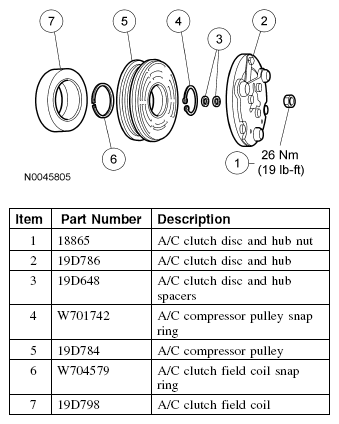

Fig 1: A/C Clutch Disc & Hub Nut Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.
