Camshaft - RH: Removal

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS .
    2. CAUTION: Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions. If the numbers cannot be seen, mark the camshaft bearing caps prior to removing them.

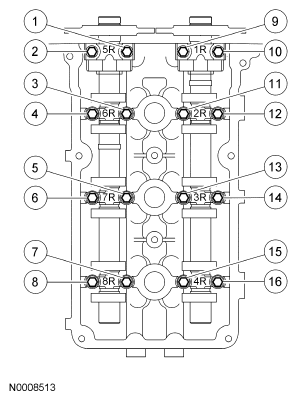

    Fig 1: Identifying Loosening Sequence Of Cylinder Head Camshaft Bearing Caps Bolts
    G04655693Courtesy of FORD MOTOR CO.
  2. Loosen the RH camshaft bolts evenly in the sequence shown to allow the camshafts to rise from the cylinder head and remove the camshaft bearing and thrust caps.
  3. Remove the camshafts from the RH cylinder heads.
