Thermostat and Thermostat Housing - Exploded View

WARNING: This page is about a different car, the 2006 Mercury Montego, 2006 Ford Freestyle, and 2006 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

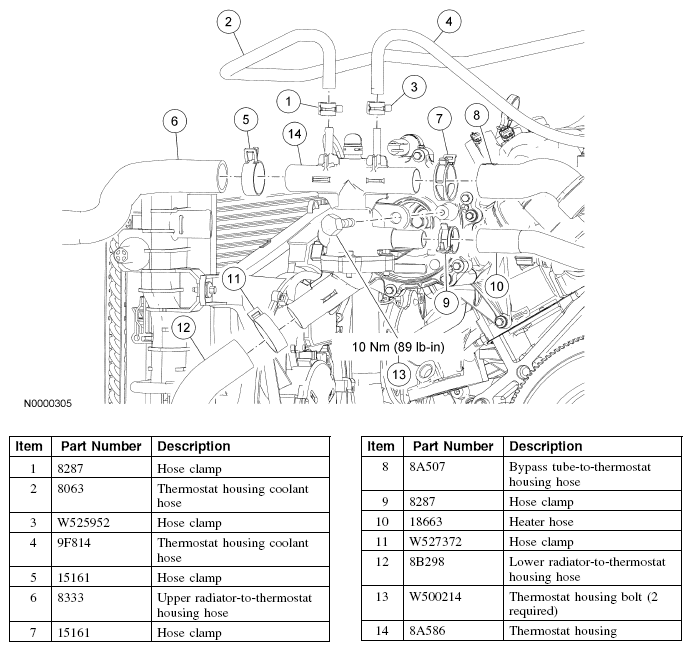

Fig 1: Thermostat & Thermostat Housing Replacement Components With Torque Specifications
G04656111Courtesy of FORD MOTOR CO.

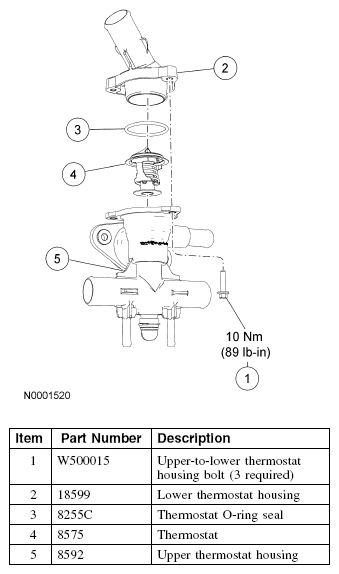

Fig 2: Thermostat & Thermostat Housing Replacement Components With Torque Specifications
G04656112Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
