Vehicle Identification Number (VIN) - Ford Freestyle

Vehicle Identification Number (VIN) Locator

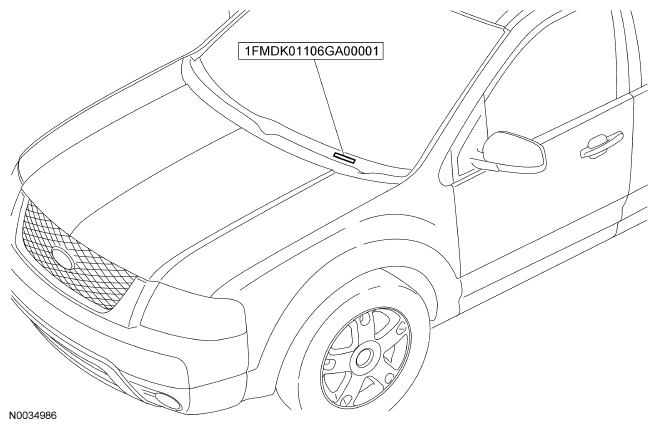

Fig 1: Identifying Vehicle Identification Number (VIN) Location - Ford Freestyle

Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel top, upper left of the dash. The VIN is also found on the vehicle certification (VC) label.

Fig 2: Identifying Vehicle Certification (VC) Label

Courtesy of FORD MOTOR CO.

World Manufacturer Identifier

Fig 3: Identifying World Manufacturer Identifier Number

Courtesy of FORD MOTOR CO.

The first 3 VIN positions are the world manufacturer code.

• 1FM - Ford Motor Company, USA, multi-purpose vehicle
• 1FT - Ford Motor Company, USA, truck (completed vehicle)

Gross Vehicle Weight Rating (GVWR) and Restraint Type

Fig 4: Identifying Gross Vehicle Weight Rating (GVWR) & Restraint Type Number

Courtesy of FORD MOTOR CO.

The fourth VIN position is the vehicle restraint-type code.

• D - 5,001-6,000 pounds (GVWR) with driver and front passenger air bags and side impact protection.
• Z - 5,001-6,000 pounds (GVWR) with driver and front passenger air bags

Vehicle Line, Series and Body Type

Fig 5: Identifying Vehicle Line, Series & Body Type Number

Courtesy of FORD MOTOR CO.

Positions 5 through 7 indicate vehicle line, series and body type.

• K00 - Ford Freestyle, delivery truck
• K01 - Ford Freestyle, FWD, SE
• K02 - Ford Freestyle, FWD, SEL
• K03 - Ford Freestyle, FWD, Limited
• K04 - Ford Freestyle, AWD, SE
• K05 - Ford Freestyle, AWD, SEL
• K06 - Ford Freestyle, AWD, Limited

Engine Type

Fig 6: Identifying Engine Type Number

Courtesy of FORD MOTOR CO.

The eighth VIN position is the engine displacement and number of cylinders.

• 1 - 3.0 L, 4V, EFI, V6

Check Digit

Fig 7: Identifying Check Digit Number

Courtesy of FORD MOTOR CO.

The ninth VIN position is a government-assigned, computer-generated check digit.

Model Year

Fig 8: Identifying Model Year Number

Courtesy of FORD MOTOR CO.

The tenth VIN position is the model year code.

• 6 - 2006

Assembly Plant

Fig 9: Identifying Assembly Plant Number

Courtesy of FORD MOTOR CO.

The eleventh VIN position is the assembly plant code.

• G - Chicago (Chicago, Illinois)

Production Sequence Number

Fig 10: Identifying Production Sequence Number

Courtesy of FORD MOTOR CO.

The last 6 VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number.

• A00001-F99999 - Ford Motor Company - multi-purpose vehicle (MPV)
