Vehicle Identification Number (VIN) - Ford Five Hundred, Mercury Montego

Vehicle Identification Number (VIN) Locator

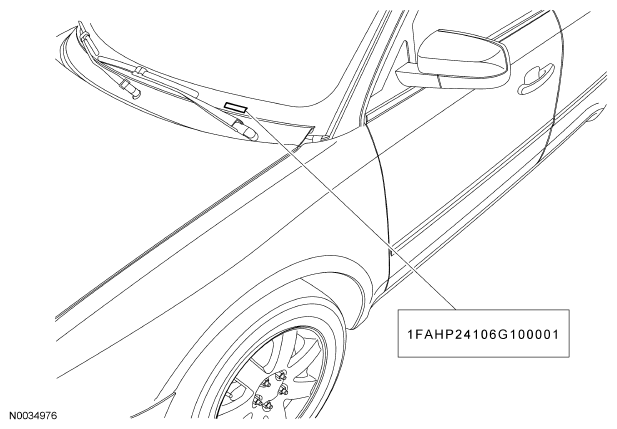

Fig 1: Identifying Vehicle Identification Number (VIN) Location - Ford Five Hundred & Mercury Montego

Courtesy of FORD MOTOR CO.

The vehicle identification number (VIN) is a 17-digit combination of letters and numbers. The VIN is stamped on a metal tab riveted to the instrument panel top, upper left of the dash. The VIN is also found on the vehicle certification (VC) label.

Fig 2: Identifying Vehicle Certification (VC) Label

Courtesy of FORD MOTOR CO.

World Manufacturer Identifier

Fig 3: Identifying World Manufacturer Identifier Number

Courtesy of FORD MOTOR CO.

The first 3 VIN positions are the world manufacturer code.

• 1FA - Ford Motor Company, USA, passenger car
• 1ME - Mercury, USA, passenger car

Restraint Type

Fig 4: Identifying Restraint Type Number

Courtesy of FORD MOTOR CO.

The fourth VIN position is the vehicle restraint-type code.

• F - Active safety belts - all positions, driver and front passenger air bags
• H - Active safety belts - all positions, driver and front passenger air bags with driver and front passenger side impact protection

Vehicle Line, Series and Body Type

Fig 5: Identifying Vehicle Line, Series & Body Type Number

Courtesy of FORD MOTOR CO.

Positions 5 through 7 indicate vehicle line, series and body type.

• M40 - Mercury Montego, FWD, Luxury
• M41 - Mercury Montego, AWD, Luxury
• M42 - Mercury Montego, FWD, Premier
• M43 - Mercury Montego, AWD, Premier
• P23 - Ford Five Hundred, FWD, SE
• P24 - Ford Five Hundred, FWD, SEL
• P25 - Ford Five Hundred, FWD, Limited
• P26 - Ford Five Hundred, AWD, SE
• P27 - Ford Five Hundred, AWD, SEL
• P28 - Ford Five Hundred, AWD, Limited

Engine Type

Fig 6: Identifying Engine Type Number

Courtesy of FORD MOTOR CO.

The eighth VIN position is the engine displacement and number of cylinders.

• 1 - 3.0 L, 4 V, EFI, V6

Check Digit

Fig 7: Identifying Check Digit Number

Courtesy of FORD MOTOR CO.

The ninth VIN position is a government-assigned, computer-generated check digit.

Model Year

Fig 8: Identifying Model Year Number

Courtesy of FORD MOTOR CO.

The tenth VIN position is the model year code.

• 6 - 2006

Assembly Plant

Fig 9: Identifying Assembly Plant Number

Courtesy of FORD MOTOR CO.

The eleventh VIN position is the assembly plant code.

• G - Chicago (Chicago, Illinois)

Production Sequence Number

Fig 10: Identifying Production Sequence Number

Courtesy of FORD MOTOR CO.

The last 6 VIN positions are a numeric code for the vehicle build sequence. This is also the vehicle serial and warranty number.

• 100001-599999 - Ford
• 600001-999999 - Mercury
