Torque Specifications: Pickup

WARNING: This page is about a different car, the 2001 Ford Pickup, 2001 Ford Econoline, 2000 Ford Pickup, and 2000 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS (PICKUP)

Application Ft. Lbs. (N.m)
A/C Compressor Mounting Bracket
Bolts 29-40 (40-55)
Nuts 16-21 (21-29)
Balance Shaft Thrust Plate Bolt 9 (12)
Camshaft Sprocket Bolt 30-36 (41-49)
Camshaft Thrust Plate Bolt 9 (12)
Connecting Rod Cap Bolt
Step 1 18 (25)
Step 2 33 (44)
Step 3 Additional 90-120 Degrees
Crankshaft Damper Bolt
On-Vehicle
2000 103-118 (140-160)
2001 118 (160)
Off-Vehicle 111 (150)
Crankshaft Pulley Bolt 24 (32)
Cylinder Head Bolt (1)(2)
Step 1 14 (20)
Step 2 29 (40)
Step 3 36 (50)
Step 4 (3) Loosen 3 Revolutions
Step 5
Short Bolt
2000 15-22 (20-30)
2001 18 (25)
Long Bolt
2000 29-37 (40-50)
2001 33 (45)
Step 6
2000 Additional 175-185 Degrees
2001 Additional 180 Degrees
EGR Valve Tube Fitting Bolt 25-34 (37-47)
Engine Mount Through-Bolt 51-67 (69-91)
Engine-To-Transmission Bolts 50-68 (68-92)
Exhaust Manifold Bolt
On-Vehicle 18 (25)
Off-Vehicle 24 (33)
Flexplate-To-Torque Converter Bolt 20-34 (27-46)
Flywheel-To-Crankshaft Bolt 59 (80)
Front Cover Bolt 15-22 (20-30)
2000
On-Vehicle (4)
Step 1 (Bolts 1-11 & 13) 16 (22)
Step 2 (Bolts 1-11 & 13) Additional 90 Degrees
(Bolt 12) (6) 7 (10)
Off-Vehicle (4)
Step 1 (Bolts 1-11 & 13) 16 (22)
Step 2 (Bolts 1-11 & 13) Additional 90 Degrees
(Bolt 12) (6) 7 (10)
2001 (4), (5)
Step 1 (Bolts 1-11 & 13) 16 (22)
Step 2 (Bolts 1-11 & 13) Additional 90 Degrees
(Bolt 12) (6) (7)
Front Engine Mounting Bolts/Nuts 50-70 (68-95)
Idle Air Control (IAC) Valve Bolt (7)
Idler Pulley Bolt 35-47 (48-64)
Main Bearing Brace Nut 29-40 (40-55)
Main Bearing Cap Bolt
2000
Step 1 37 (50)
Step 2 Additional 90 Degrees
2001
Step 1 37 (50)
Step 2 Additional 120 Degrees
Oil Baffle Plate Nuts
2000 30-37 (40-50)
2001 24 (32)
Oil Drain Plug 19 (26)
Oil Pan-To-Transmission Bolt 33 (45)
Oil Pump Inlet Tube 18 (25)
Oil Pump Screen Cover
2000
Bolt 14-22 (20-30)
Nut 30-37 (40-50)
2001
Bolt 18 (25)
Nut 24 (35)
Oil Pump-To-Front Cover
Inner 18 (25)
Outer (7)
Rocker Arm Fulcrum Bolt
2000 22-29 (30-40)
2001 (8)
Step 1 26 (35)
Step 2
Synchronizer Drive Gear 33 (45)
Timing Chain Vibration Damper Bolt 9 (12)
Valve Tappet Guide Bolt 8 (12)
Water Pump Bolt/Nuts 15-22 (20-30)
Water Pump Pulley Bolt 18 (25)
INCH Lbs. (N.m)
Crankshaft Position Sensor 53 (6)
Intake Manifold Bolts & Stud (9)
Lower
2000
Step 1 44 (5)
Step 2 89 (10)
2001
In-Vehicle
Step 1 44 (5)
Step 2 89 (10)
Spacer
2001
Step 1 53 (6)
Step 2 89 (10)
Upper (10)
2000
Step 1 59 (7)
Step 2 66 (8)
Step 3 Additional 90 Degrees
2001
Step 1 53 (6)
Step 2 89 (10)
Oil Pan-To-Cylinder Block (11)
Step 1 44 (5)
Step 2 89 (10)
Timing Pointer 71-106 (8-12)
Valve Cover Bolt 89 (10)
(1) DO NOT reuse bolts.

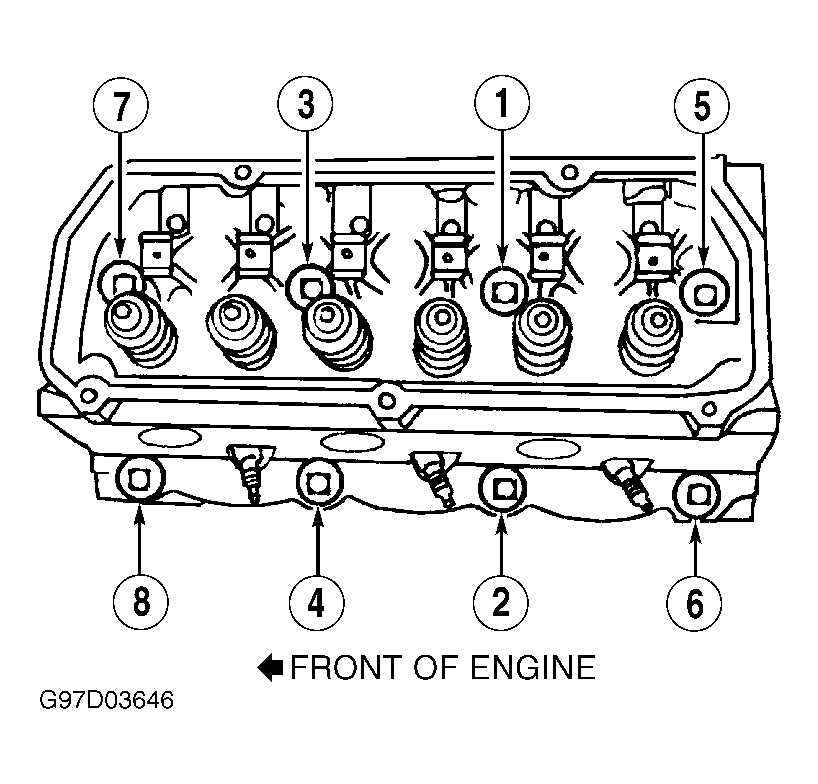

(2) Tighten in sequence. See Figure.
(3) DO NOT loosen all bolts at same time. Loosen and torque to specification one bolt at a time.

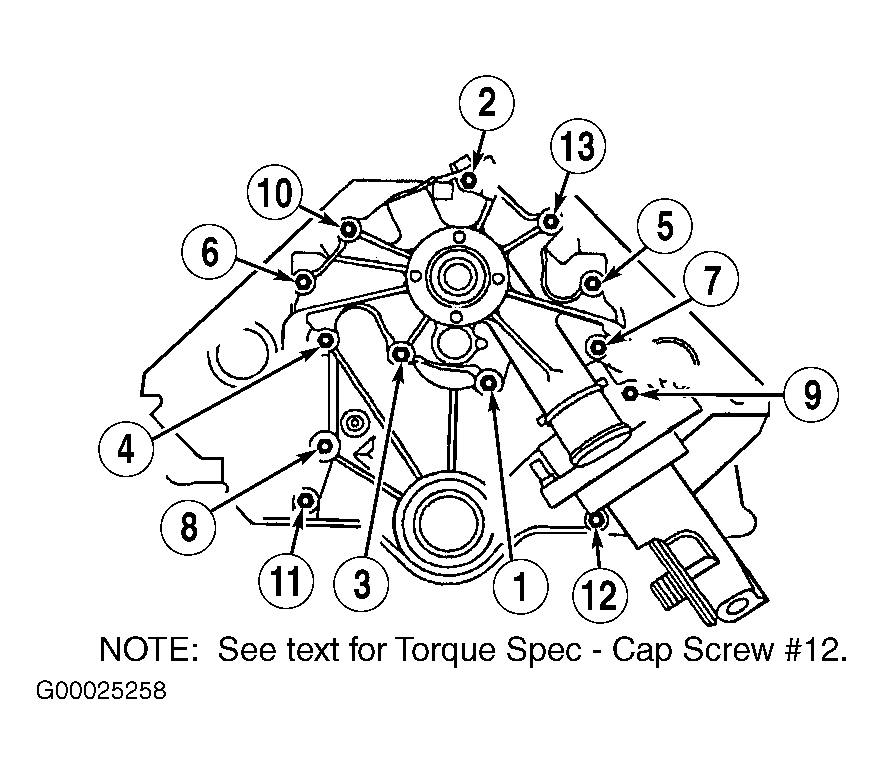

(4) Tighten bolt in sequence. See Figure.
(5) Install studs first and tighten to 62 INCH lbs. (7 N.m).
(6) Bolt in No. 12 position is not part of tightening sequence. See appropriate INSTALLATION procedure under FRONT COVER .
(7) Tighten bolts to 89 INCH lbs. (10 N.m).
(8) Tighten bolts to 44 INCH lbs. (5 N.m).
(9) Tighten in sequence. See Figure-Figure .
(10) Omit Step 3, if installing upper intake manifold, Off-Vehicle.
(11) Tighten in sequence. See Figure.
