Exhaust Manifold: Installation

WARNING: This page is about a different car, the 2001 Ford Pickup, 2001 Ford Econoline, 2000 Ford Pickup, and 2000 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten exhaust manifold nuts to specification in sequence. See Fig 1. See TORQUE SPECIFICATIONS .

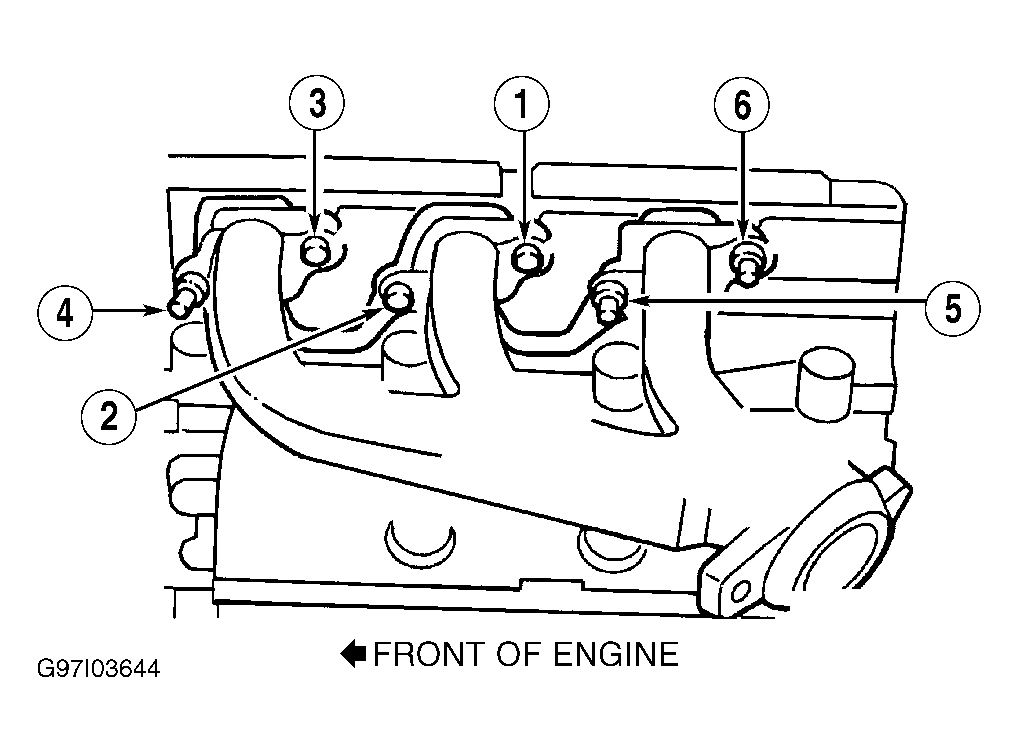

Fig 1: Exhaust Manifold Bolt Tightening Sequence
G97I03644Courtesy of FORD MOTOR CO.
