Front Door Handles, Locks and Latches - Exploded View

WARNING: This page is about a different car, the 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The LH door is shown, the RH door is similar.

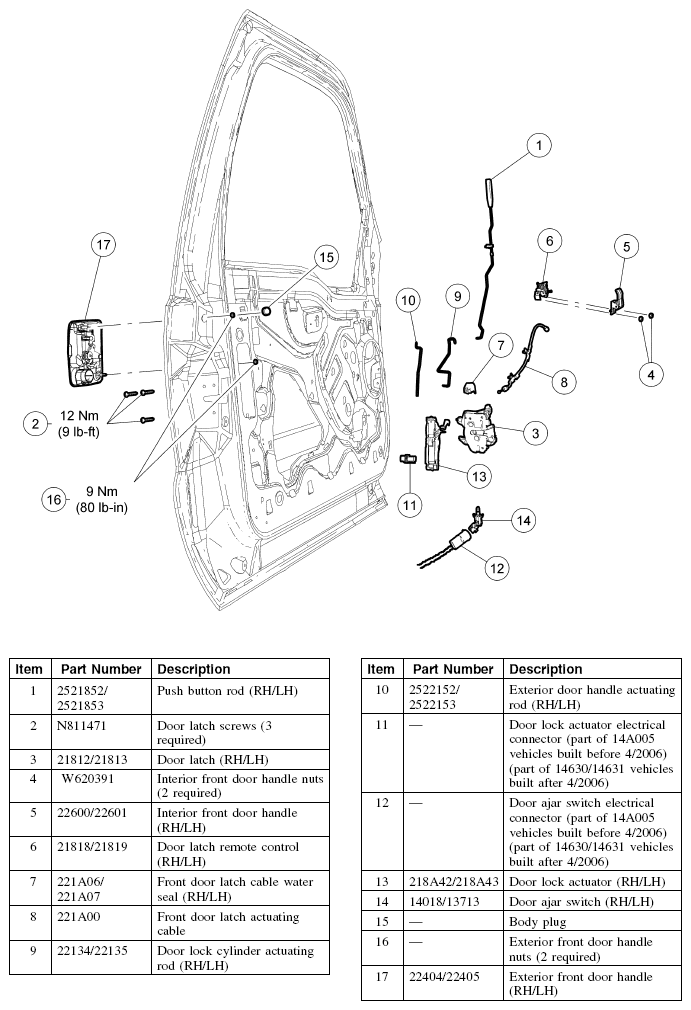

Fig 1: Front Door Handles, Locks And Latches - Exploded View
G04646453Courtesy of FORD MOTOR CO.
