Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Make sure the ignition switch is in the OFF position prior to working on the electronic engine controls.
  1. Turn the ignition switch to the OFF position.
  2. WARNING: Never remove the pressure relief cap while the engine is operating or when the cooling system is hot. Failure to follow these instructions can result in damage to the cooling system or engine or result in personal injury. To avoid having scalding hot coolant or steam blow out of the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the pressure is released from the cooling system. When certain all the pressure has been released, (still with a cloth) turn and remove the pressure relief cap. Failure to follow these instructions can result in personal injury.

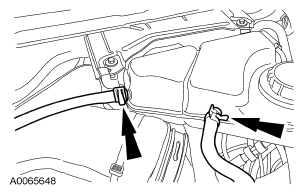

    Fig 1: Locating Plug Or Cap And Engine Vent Hose
    G04649497Courtesy of FORD MOTOR CO.
  3. Relieve the cooling system pressure. Disconnect and plug or cap the engine vent hose and radiator vent hose.
  4. Remove the 2 bolts and position the degas bottle aside.
    • To install, tighten to 10 Nm (89 lb-in).
      Fig 2: Locating Degas Bottle Bolts
      G04649498Courtesy of FORD MOTOR CO.
  5. Release the 2 exhaust pressure (EP) sensor harness pin-type retainers.
    Fig 3: Locating Exhaust Pressure (EP) Sensor Harness Pin-Type Retainers
    G04649499Courtesy of FORD MOTOR CO.
  6. Disconnect the EP sensor electrical connector and position the harness aside.
    Fig 4: Locating EP Sensor Electrical Connector
    G04649500Courtesy of FORD MOTOR CO.
  7. Remove the fuel injector control module (FICM) nuts and bracket.
    • To install, tighten to 13 Nm (10 lb-ft).

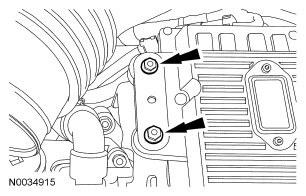

      Fig 5: Locating Fuel Injector Control Module (FICM) Nuts
      G04649501Courtesy of FORD MOTOR CO.
  8. Remove the FICM bolts.
    • To install, tighten to 13 Nm (10 lb-ft).
      Fig 6: Locating FICM Bolts
      G04649502Courtesy of FORD MOTOR CO.
  9. CAUTION: Make sure both latches are released before removing the electrical connectors or connector damage can occur.

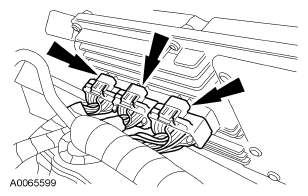

    Fig 7: Locating FICM Electrical Connectors
    G04649503Courtesy of FORD MOTOR CO.
  10. Position out the FICM and disconnect the electrical connectors. Remove the FICM.
  11. CAUTION: With the engine cold, fill vehicles without a yellow fill level decal on the degas bottle only to the MIN line. The correct fill level on these vehicles is between the MIN line and 15 mm (0.59 in) below the MIN line. Fill vehicles with a yellow fill level decal to within the yellow cold fill range shown on the decal. These fill levels will allow for coolant expansion. Overfilling the degas bottle may result in damage to the pressure cap, which can cause the engine to overheat.
  12. To install, reverse the removal procedure.
