Hydraulic Control Unit (HCU): Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

MATERIAL SPECIFICATIONS

Item	Specification
High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1)	ESA-M6C25-A or WSS-M6C62-A

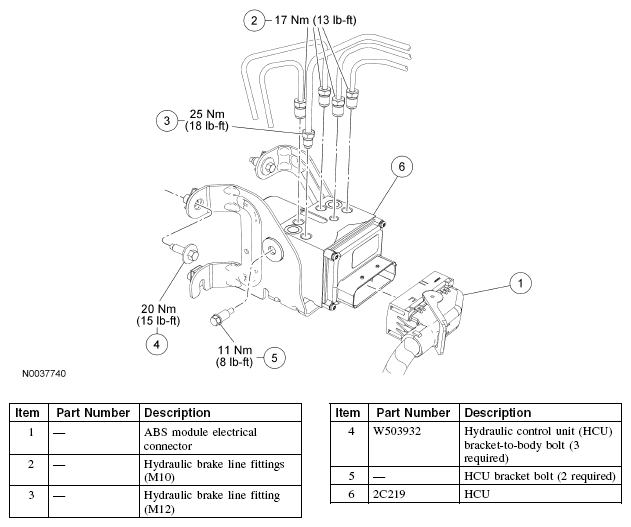

Fig 1: Identifying Hydraulic Control Unit (HCU) Components

Courtesy of FORD MOTOR CO.
