Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2006 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

    All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the rear driveshaft from the transmission and position it aside. For additional information, refer to DRIVESHAFT .

    3. Vehicles with 4-wheel drive

  3. Remove the transfer case. For additional information, refer to TRANSFER CASE .
  4. Using the special tools, remove and discard the output oil seal.

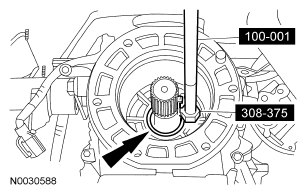

    Fig 1: Locating Output Oil Seal
    G04650383Courtesy of FORD MOTOR CO.

    5. Vehicles with 2-wheel drive

  5. Using the special tools, remove the transmission flange.
    Fig 2: Identifying Special Tools
    G04650384Courtesy of FORD MOTOR CO.
  6. Remove and discard the output oil seal.
    Fig 3: Locating Output Oil Seal
    G04650385Courtesy of FORD MOTOR CO.
