Main Shaft: Notes
WARNING: This page is about a different car, the 2006 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Fixture, Gear Pack 308-381 |
|
| Remover/Installer, Transmission Bearing Collet 308-132 (T87T-7025-FH) |
|
| Guide, Thrust Washer 308-415 |
|
| Remover/Installer, Thrust Washer Bearing Cup 308-416 |
|
| Remover/Installer, Bearing Tube 308-052 (T77J-7025-B) |
|
| Remover, Bearing Collet Sleeve 308-029 (T75L-7025-G) |
|
| Screw, Bearing Removal Tube 308-092 (T84T-7025-B) |
|
| 2- or 3-Jaw Puller 205-D027 (D80L-1013-A) |
|
| Shaft Protector Set 205-DS004 (D80L-625-A) |
|
| Puller, Bearing 205-D064 (D84L-1123-A) or equivalent |
|
| Installer, Wheel Speed Sensor Ring 206-059 (T94P-20202-B1) |
|
| Gear/Bearing Heater 164-R3900 |
|
| 17.5 Ton Press 014-00021 |
|
| Dial Indicator Gauge With Holding Fixture 100-002 (TOOL-4201-A) |
|
| Gauge, Clutch Housing 308-021 (T75L-4201-A) |

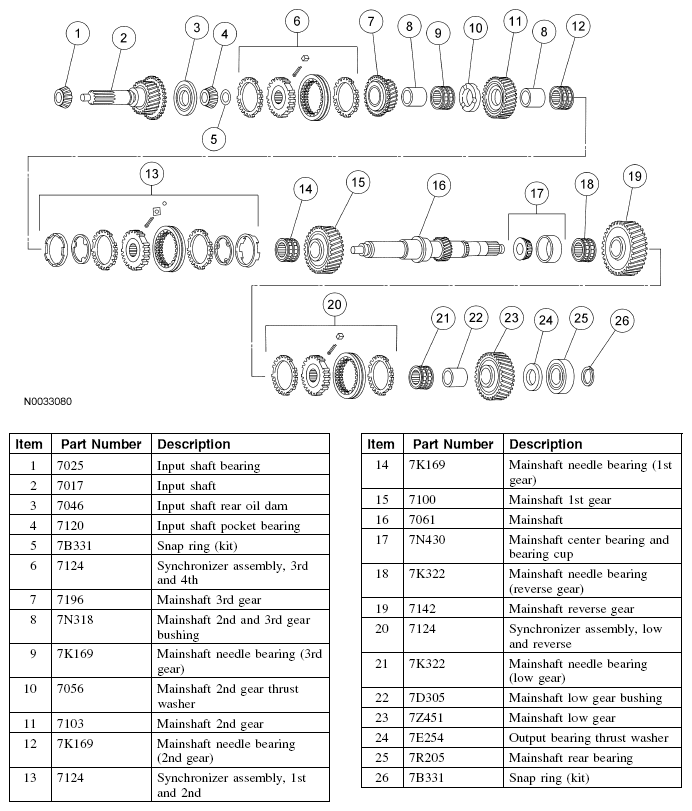

Mainshaft Components - Disassembled View
