Disassembly And Assembly Of Subassemblies: Case: Disassembly

WARNING: This page is about a different car, the 2006 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, remove the countershaft bearing cup and shim. Discard the shim.
    • Inspect the countershaft bearing cup for wear or damage. Install a new cup as necessary.
    • Install a new cup if the countershaft front bearing was installed new.
      Fig 1: Installing Countershaft Front Bearing
      G04650566Courtesy of FORD MOTOR CO.
  2. NOTE: Oil pump removal is only necessary if a large amount of particles were in the transmission during disassembly.
    Fig 2: Locating Oil Pump Snap Ring
    G04650567Courtesy of FORD MOTOR CO.
  3. Remove the oil pump snap ring.
  4. Remove the oil pump assembly.
    • Using vise-grips, pull upward on the center shaft.
    • Thoroughly clean the oil pump housing. Inspect the oil pump for wear or damage. Install a new oil pump assembly as necessary.
      Fig 3: Locating Oil Pump Housing
      G04650568Courtesy of FORD MOTOR CO.
  5. Using a brass drift, dent the input shaft oil baffle for puller tool clearance.
    Fig 4: Locating Brass Drift
    G04650569Courtesy of FORD MOTOR CO.
  6. Using the special tools, remove the input shaft bearing cup.
    • Inspect the input shaft bearing cup for wear or damage. Install a new cup as necessary.
    • Install a new cup if the input shaft bearing was installed new.
      Fig 5: Installing Input Shaft Bearing
      G04650570Courtesy of FORD MOTOR CO.
  7. Remove the input shaft oil dam bearing ring.

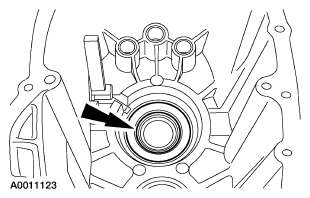

    Fig 6: Locating Input Shaft Oil Dam Bearing Ring
    G04650571Courtesy of FORD MOTOR CO.
  8. Remove the input shaft shim. Discard the shim.
    Fig 7: Locating Input Shaft Shim
    G04650572Courtesy of FORD MOTOR CO.
  9. Remove the oil trough.
    Fig 8: Locating Oil Trough
    G04650573Courtesy of FORD MOTOR CO.
  10. Remove the guide tube.
    Fig 9: Locating Guide Tube
    G04650574Courtesy of FORD MOTOR CO.
  11. Remove the input shaft oil seal.
    Fig 10: Locating Input Shaft Oil Seal
    G04650575Courtesy of FORD MOTOR CO.
  12. Remove the PTO cover.
    Fig 11: Locating PTO Cover
    G04650576Courtesy of FORD MOTOR CO.
  13. NOTE: Inspect the bearing for wear or damage before removing.
    Fig 12: Locating Shift Rail Bearing
    G04650577Courtesy of FORD MOTOR CO.
  14. Using the special tools, remove and discard the shift rail bearing.
