Window Glass - Rear Door, SuperCab: Removal

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws and position the latch aside.
    Fig 1: Locating Latch Screws
    G04646248
  2. Remove the rear door window trim panel.
    Fig 2: Removing Rear Door Window Trim Panel
    G04646249
  3. Remove the rear door window glass.
    1. Remove the nuts and clips.
    2. Remove the rear door window glass and frame.

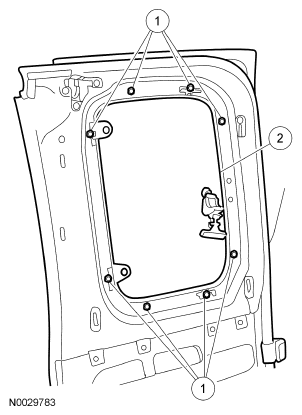

      Fig 3: Identifying Rear Door Window Glass And Frame Nuts And Clips
      G04646250
  4. Remove excess foam butyl from the window frame and window opening.
