Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

With power windows

Remove the window control switch. For additional information, refer to WINDOW CONTROL SWITCH .

With manual windows

Remove the window regulator handle.
1. Position the window regulator handle cover aside.
2. Remove the window regulator handle retaining screw and the window regulator handle.

  Fig 1: Locating Window Regulator Handle Retaining Screw

All vehicles

Remove the door trim panel and watershield. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Loosen the glass clamp nuts.
- Temporarily install the window switch or window regulator handle, and lower the window to access the glass bracket nuts.
- To install, tighten to 13 Nm (10 lb-ft).

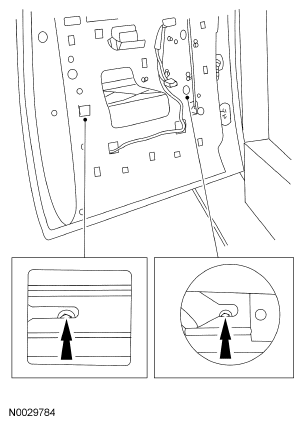

  Fig 2: Locating Glass Clamp Nuts
Remove the inner and outer beltline weatherstrips.

Fig 3: Locating Inner And Outer Beltline Weatherstrips
Loosen the rear glass run bolt.
- To install, tighten to 13 Nm (10 lb-ft).

  Fig 4: Locating Rear Glass Run Bolt
Remove the rear door window glass from the regulator channel by sliding the channel forward, then position the rear door window glass in the bottom of the door.
Remove the window glass.
- Remove the front edge of the window glass from the glass run.
- Lift the window glass up through the beltline weatherstrip opening to remove from the door.
To install, reverse the removal procedure.
