Solenoid Body Assembly: Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install a new solenoid body gasket.

Fig 1: View Of Solenoid Body Gasket
Courtesy of FORD MOTOR CO.
Using the special tools, install the solenoid body and loosely install the bolts.
- While installing the solenoid body, align the manual valve.

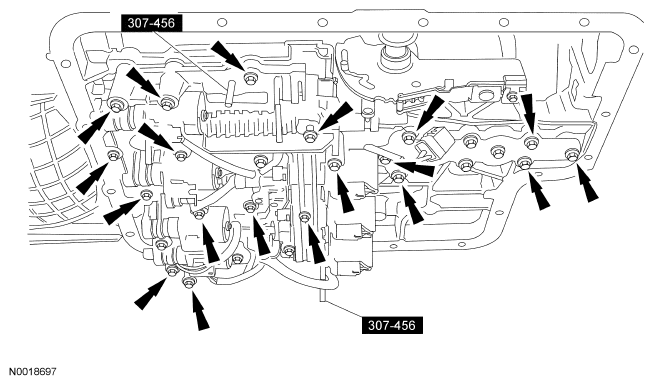

  Fig 2: Locating Solenoid Body Bolts
  Courtesy of FORD MOTOR CO.
Tighten all the bolts in the sequence shown.
- Tighten to 13 Nm (10 lb-ft).

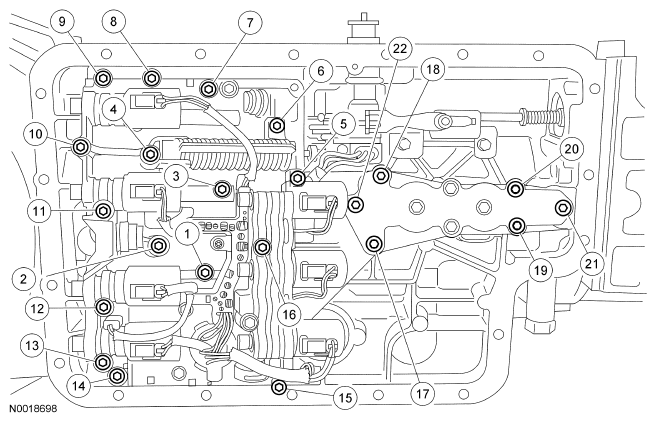

  Fig 3: Identifying Solenoid Body Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
Connect the TR sensor connector.

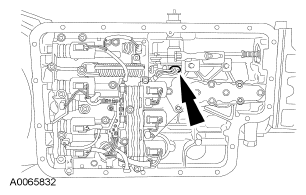

Fig 4: Locating TR Sensor Connector
Courtesy of FORD MOTOR CO.
Install the transmission fluid filter, pan gasket and pan. For additional information, refer to FLUID PAN, GASKET AND FILTER .
Connect the solenoid body electrical connector.
- Tighten to 5 Nm (44 lb-in).

  Fig 5: Identifying Solenoid Body Electrical Connector
  Courtesy of FORD MOTOR CO.
