Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Some solenoid body bolts and wire loom bolts will need to be removed in order to remove affected solenoids.
NOTE: The line pressure solenoid is not serviced in the vehicle. The solenoid body will need to be removed to remove line pressure solenoid. For additional information, refer to SOLENOID BODY ASSEMBLY .
  1. Remove the transmission fluid pan, gasket and filter. For additional information, refer to FLUID PAN, GASKET AND FILTER .
  2. Disconnect the affected shift solenoid electrical connector.
    Fig 1: Locating Affected Shift Solenoid Electrical Connector
    G04649672Courtesy of FORD MOTOR CO.
  3. Remove the affected shift solenoid.
    1. Remove the retaining E clip.
    2. Remove the affected shift solenoid.

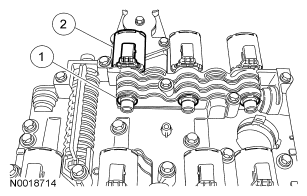

      Fig 2: Identifying Affected Shift Solenoid
      G04649673Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
