Solenoid Body: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
MERCON® SP Automatic Transmission Fluid XT-6-QSP MERCON® SP

Upper, Lower, Accumulator and Solenoid Body, Disassembled View

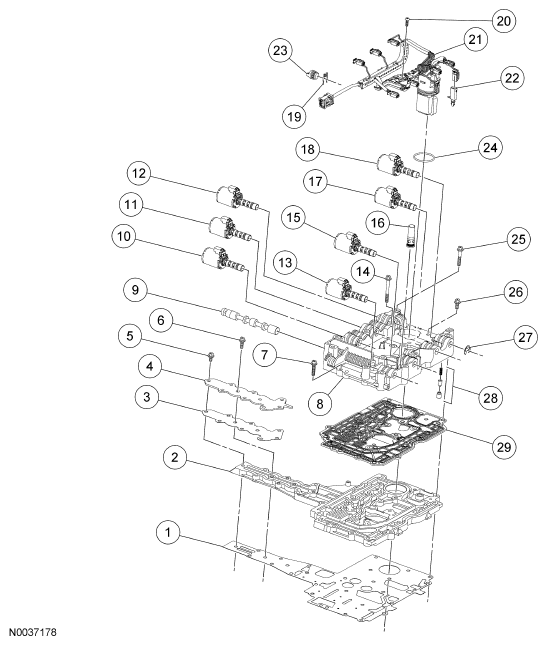

Fig 1: Exploded View Of Solenoid Body (Upper, Lower, Accumulator And Solenoid Body)
G04649874Courtesy of FORD MOTOR CO.

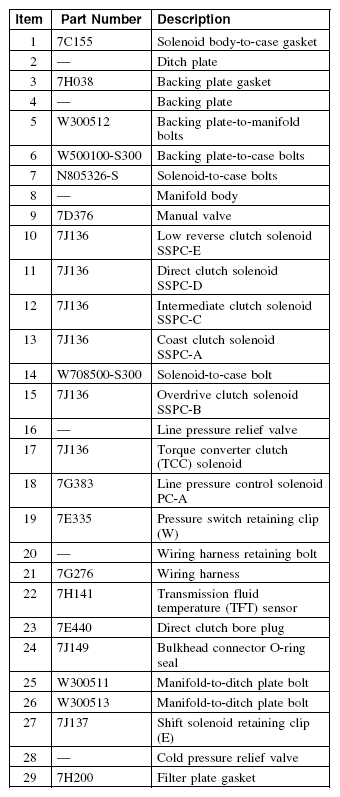

Fig 2: Solenoid Body Components Description Chart (Upper, Lower, Accumulator And Solenoid Body)
G04649875Courtesy of FORD MOTOR CO.
