Solenoid Body: Disassembly

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the manual valve.
    Fig 1: Locating Manual Valve
    G03889343Courtesy of FORD MOTOR CO.
  2. Remove and discard the solenoid body electrical connector O-ring seal.
    Fig 2: Locating Solenoid Body Electrical Connector O-Ring Seal
    G03889078Courtesy of FORD MOTOR CO.
  3. Remove the main control valve body electrical harness.
    • Remove the 2 bolts.
    • Disconnect the electrical connectors.
    • Twist and push the bulkhead connector through the solenoid body.
    • Remove the solenoid body electrical harness.
      Fig 3: Locating Main Control Valve Body Electrical Harness
      G03889345Courtesy of FORD MOTOR CO.
  4. NOTE: Mark the location of each solenoid for correct installation.
    Fig 4: Locating Shift Solenoids With E-Clips
    G03889346Courtesy of FORD MOTOR CO.
  5. Remove the E-clips and remove the solenoids.
  6. Remove the transmission fluid temperature (TFT) sensor.
    Fig 5: Locating Transmission Fluid Temperature (TFT) Sensor
    G03889347Courtesy of FORD MOTOR CO.
  7. Note the location and length of each bolt.

    Remove the 4 bolts and remove the top half of the main control valve body.

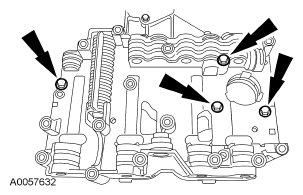

    Fig 6: Locating Main Control Valve Body
    G04649881Courtesy of FORD MOTOR CO.
  8. NOTE: The gasket should not be cleaned or reused.
    Fig 7: Identifying Filter Screen Gasket
    G03889349Courtesy of FORD MOTOR CO.
  9. Remove and discard the gasket.
  10. Remove the bolts, backing plate and discard the gasket. Clean and inspect the components.
    Fig 8: Identifying Backing Plate Bolts
    G04649883Courtesy of FORD MOTOR CO.
