Solenoid Body: Assembly

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Install a new gasket and the backing plate.
- Tighten to 13 Nm (10 lb-ft).

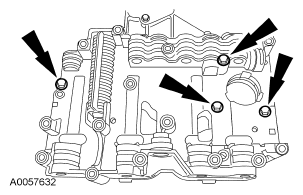

  Fig 1: Identifying Backing Plate Gasket
  Courtesy of FORD MOTOR CO.
Install a new filter screen gasket.

Fig 2: Identifying Filter Screen Gasket
Courtesy of FORD MOTOR CO.

NOTE: Tighten the bolts in a crisscross pattern to prevent the gasket from becoming distorted.

Assemble the top and bottom halves of the solenoid body.
- Tighten to 13 Nm (10 lb-ft).

  Fig 3: Identifying Solenoid Body Bolts
  Courtesy of FORD MOTOR CO.
Install the TFT sensor.

Fig 4: Locating Transmission Fluid Temperature (TFT) Sensor
Courtesy of FORD MOTOR CO.
Install the shift solenoids with the E-clips.

Fig 5: Locating Shift Solenoids With E-Clips
Courtesy of FORD MOTOR CO.
Install a new O-ring seal on the solenoid body electrical connector in the uppermost groove. Lubricate the O-ring seal with clean automatic transmission fluid.

Fig 6: Locating Solenoid Body Electrical Connector O-Ring Seal
Courtesy of FORD MOTOR CO.
Install the solenoid body harness and connect the connectors.

Fig 7: Locating Main Control Valve Body Electrical Harness
Courtesy of FORD MOTOR CO.
Install the manual valve.

Fig 8: Locating Manual Valve
Courtesy of FORD MOTOR CO.
