Exhaust System - Exploded View

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Exhaust system - Gasoline engine

NOTE: Vehicle body removed for clarity.

NOTE: Exhaust systems will vary by wheelbase.

NOTE: Frames will vary by width and length.

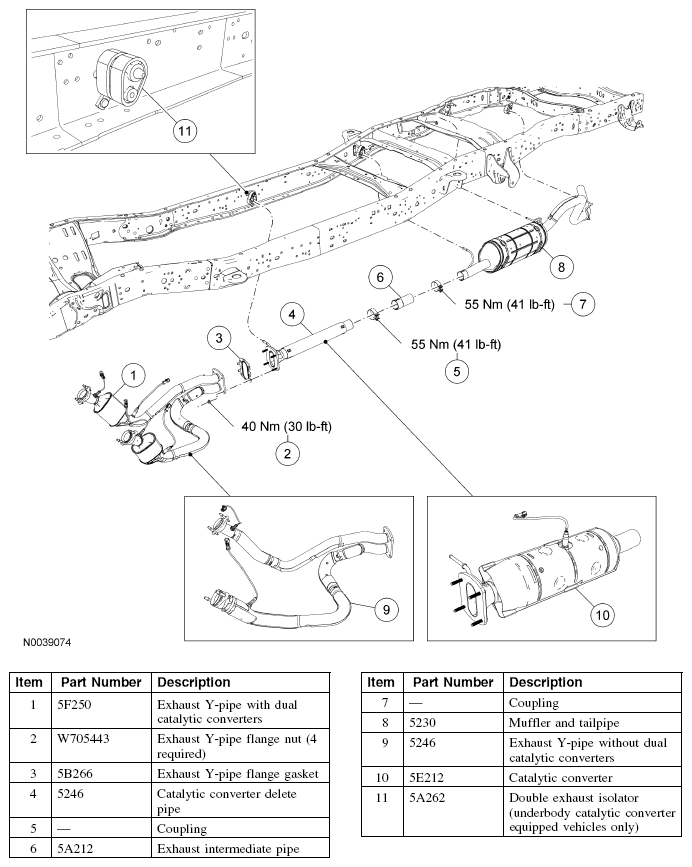

Fig 1: Exploded View Of Exhaust System - Gasoline Engine

Courtesy of FORD MOTOR CO.

Exhaust system - Diesel engine

NOTE: Vehicle body removed for clarity.

NOTE: Exhaust systems will vary by wheelbase.

NOTE: Frames will vary by width and length.

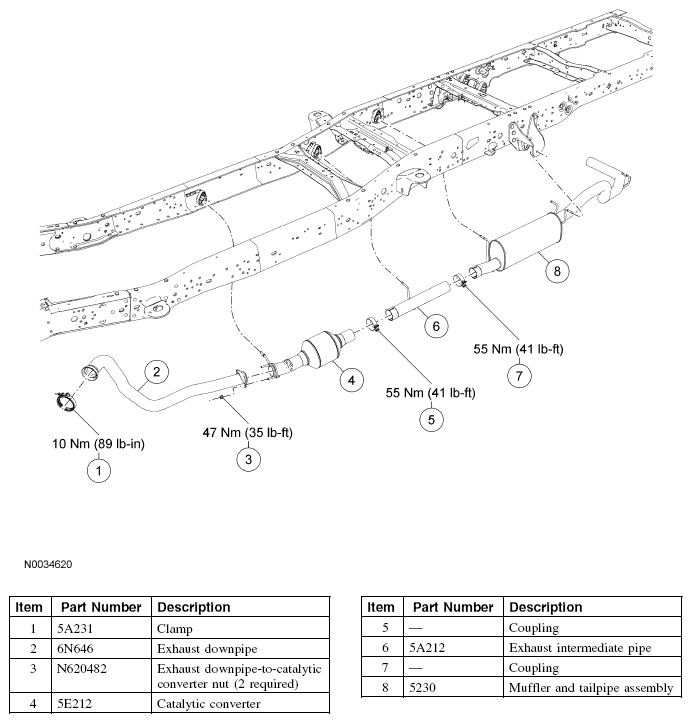

Fig 2: Exploded View Of Exhaust System - Diesel Engine

Courtesy of FORD MOTOR CO.
