Compressor Manifold and Tube Assembly: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATION

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D WSH-M1C231-B

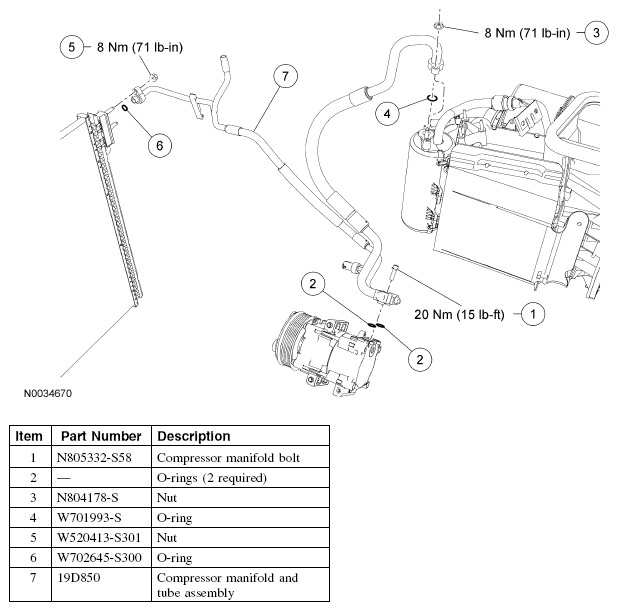

Fig 1: Identifying Compressor Manifold And Tube Assembly Components
G04645169Courtesy of FORD MOTOR CO.
