Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with 6.0L diesel

Remove the retainers and the insulator.

Fig 1: Locating Retainers And Insulator
Courtesy of FORD MOTOR CO.
Disconnect the electrical connector from the vacuum pump.

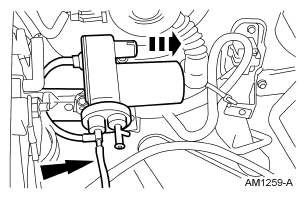

Fig 2: Locating Vacuum Pump Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts.
- To install, tighten to 11 Nm (8 lb-ft).

  Fig 3: Locating Bolts
  Courtesy of FORD MOTOR CO.
Disconnect the vacuum hose and remove the vacuum pump and mounting bracket.

Fig 4: Locating Vacuum Pump And Mounting Bracket
Courtesy of FORD MOTOR CO.

Vehicles with 5.4L and 6.8L

Disconnect the speed control servo connector.

Fig 5: Locating Speed Control Servo Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the speed control servo.
- To install, tighten to 11 Nm (8 lb-ft).

  Fig 6: Locating Speed Control Servo
  Courtesy of FORD MOTOR CO.

All vehicles

Disconnect the blower motor electrical connector.

Fig 7: Locating Blower Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the blower motor ventilation tube.

Fig 8: Locating Blower Motor Ventilation Tube
Courtesy of FORD MOTOR CO.
Remove the screws and remove the blower motor.

Fig 9: Locating Screws
Courtesy of FORD MOTOR CO.

CAUTION: If the wheel is to be reused, clean the corrosion from the shaft end prior to removing the wheel.

Remove the wheel from the blower motor.
1. Remove the push clip.
2. Remove the wheel from the blower motor.

  Fig 10: Identifying Wheel From Blower Motor
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
