Valve Cover - LH: Removal
WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
- Remove the LH ignition coils. For additional information, refer to ENGINE IGNITION - 5.4L AND 6.8L (3V) .
- Remove the oil level indicator and tube. For additional information, refer to OIL LEVEL INDICATOR AND TUBE .
- Disconnect the quick connect couplings and remove the positive crankcase ventilation (PCV) tube. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION - GASOLINE AND DIESEL .

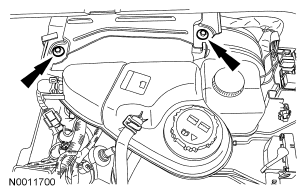

- Remove the 2 bolts and position the degas bottle aside.
- Disconnect the engine wiring harness retainers from the valve cover studs and position aside.
- Loosen the 17 fasteners in the sequence shown and remove the LH valve cover and gasket.
- Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
- Discard the valve cover gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
CAUTION:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
NOTE:
The bolts are part of the valve cover and should not be removed.
