Camshaft - RH: Removal

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The camshaft procedure must be followed exactly or damage to the valves and pistons will result.
  1. Position the crankshaft damper spoke at the 12 o'clock position and the timing mark indentation at the 1 o'clock position.
    Fig 1: Locating Crankshaft Damper Spoke Timing Mark
    G03919987Courtesy of FORD MOTOR CO.
  2. Remove the RH valve cover. For additional information, refer to VALVE COVER - RH .
    3. CAUTION: Only use hand tools to loosen the camshaft sprocket bolt or damage may occur to the camshaft or camshaft sprocket.
    Fig 2: Identifying Camshaft Sprocket Bolt
    G03920660Courtesy of FORD MOTOR CO.
  3. Loosen and backoff the RH camshaft sprocket bolt one full turn.
  4. Disconnect the camshaft position (CMP) sensor electrical connector.
    Fig 3: Identifying RH CMP Sensor Electrical Connector
    G03919909Courtesy of FORD MOTOR CO.
  5. Remove the bolt and the CMP sensor.
    Fig 4: Locating Camshaft (CMP) Sensor Bolt
    G03920013Courtesy of FORD MOTOR CO.
    6. NOTE: If the camshaft lobes are not exactly positioned as shown, the crankshaft will require one full additional rotation to 12 o'clock.
    Fig 5: Identifying Camshaft Lobe Position
    G03919944Courtesy of FORD MOTOR CO.
  6. The No. 1 cylinder camshaft exhaust lobe must be coming up on the exhaust stroke. Verify by noting the position of the 2 intake camshaft lobes and the exhaust lobe on the No. 1 cylinder.
    7. CAUTION: If the components are to be reinstalled, they must be installed in the same positions. Mark the components for installation into the original locations.

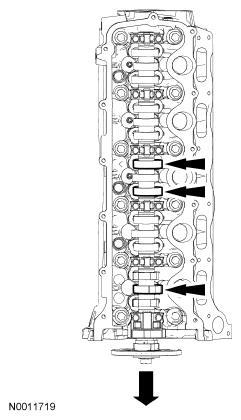

    Fig 6: Locating Camshaft Roller Followers
    G04647707Courtesy of FORD MOTOR CO.
  7. Remove only the 3 camshaft roller followers shown in the illustration from the RH cylinder head.
    8. CAUTION: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder.
    NOTE: The camshaft roller followers must be installed in their original locations. Record camshaft roller follower locations.
    NOTE: It may be necessary to push the valve down while compressing the spring.
    Fig 7: Identifying Special Tool For Removing/Installing Camshaft Roller Followers
    G03919946Courtesy of FORD MOTOR CO.
  8. Using the special tool, remove only the 3 designated camshaft roller followers from the previous step.
    9. CAUTION: The crankshaft cannot be moved past the 6 o'clock position once set.
    Fig 8: Positioning Crankshaft Damper Spoke At 6 O'clock Position And Timing Mark Indentation At 7 O'clock Position
    G03919993Courtesy of FORD MOTOR CO.
  9. Rotate the crankshaft clockwise, as viewed from the front, positioning the crankshaft damper spoke at the 6 o'clock position and the timing mark indentation at the 7 o'clock position.
    10. CAUTION: Engine is not freewheeling. Camshaft procedure must be followed exactly or damage to valves and pistons will result.
    CAUTION: The Timing Chain Wedge tool must be installed square to the timing chain and the engine block.
    NOTE: Front cover removed for clarity.

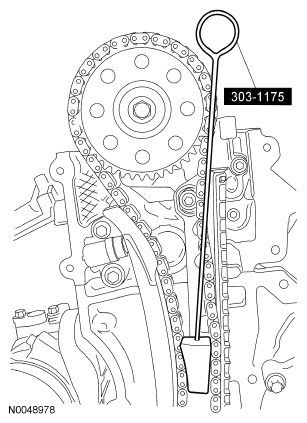

    Fig 9: Identifying Special Tool
    G04647710Courtesy of FORD MOTOR CO.
  10. Install the special tool in the RH timing chain as shown.
    11. CAUTION: Do not remove the timing chain wedge tool at any time during assembly. If the special tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed. For additional information, refer to TIMING DRIVE COMPONENTS .
    CAUTION: The timing chain must be installed in its original position onto the camshaft sprocket using the scribed marks, or damage to valves and pistons will result.
    Fig 10: Locating Mark On Timing Chain And Camshaft Sprocket
    G04647711Courtesy of FORD MOTOR CO.
  11. Scribe a location mark on the timing chain and the camshaft sprocket assembly.
    12. CAUTION: Remove the front thrust camshaft bearing cap straight upward from the bearing towers or the bearing cap may be damaged from sideloading.
    NOTE: The camshaft bearing caps must be installed in their original locations. Record camshaft bearing cap locations.
    Fig 11: Identifying RH Camshaft Bearing Cap Bolt Removal/Installation Sequence
    G03920676Courtesy of FORD MOTOR CO.
  12. Remove the bolts in the sequence shown and remove the front camshaft bearing cap and then the remaining bearing caps.
  13. Clean and inspect the RH camshaft bearing caps.
    • The camshaft front thrust bearing cap contains an oil metering groove. Make sure the groove is free of foreign material.
      Fig 12: Identifying Camshaft Front Thrust Bearing Cap Oil Metering Groove
      G03919957Courtesy of FORD MOTOR CO.
    14. CAUTION: Only use hand tools to remove the camshaft sprocket bolt or damage may occur to the camshaft or camshaft sprocket.
    CAUTION: Do not remove the timing chain wedge tool at any time during assembly. If the special tool is removed or out of placement, the engine front cover must be removed and the engine must be retimed. For additional information, refer to TIMING DRIVE COMPONENTS .
  14. Remove the bolt and withdraw the camshaft and balance shaft gear from the sprocket assembly leaving the sprocket assembly and timing chain in place.
    • Discard the bolt and washer.
      Fig 13: Identifying Camshaft Sprocket Bolt
      G03920660Courtesy of FORD MOTOR CO.
