Radiator and Cooling Fan - Exploded View, Diesel Engines

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

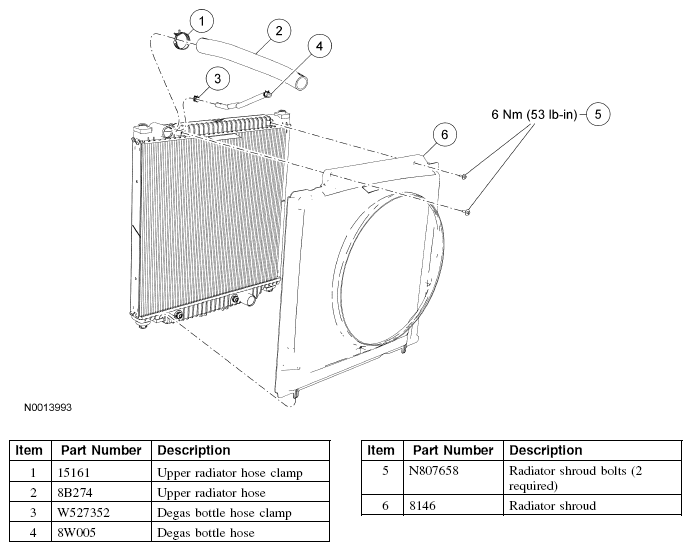

Fig 1: Exploded View Of Radiator And Cooling Fan - Diesel Engines (1 Of 3)

Courtesy of FORD MOTOR CO.

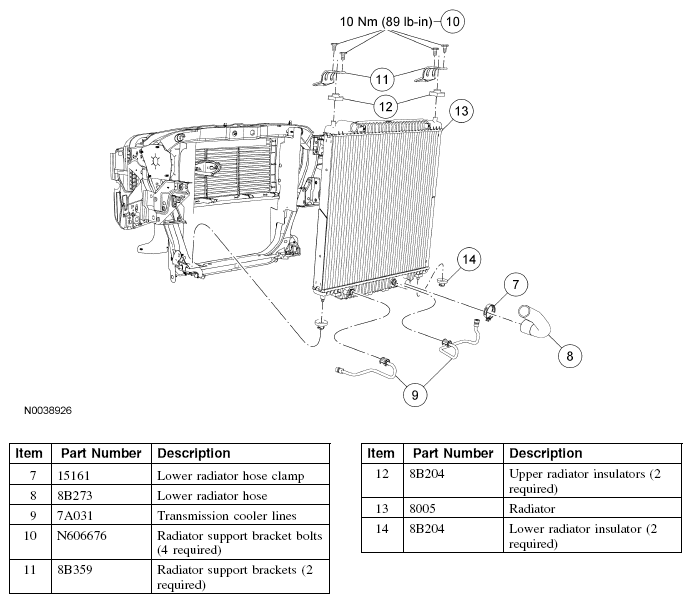

Fig 2: Exploded View Of Radiator And Cooling Fan - Diesel Engines (2 Of 3)

Courtesy of FORD MOTOR CO.

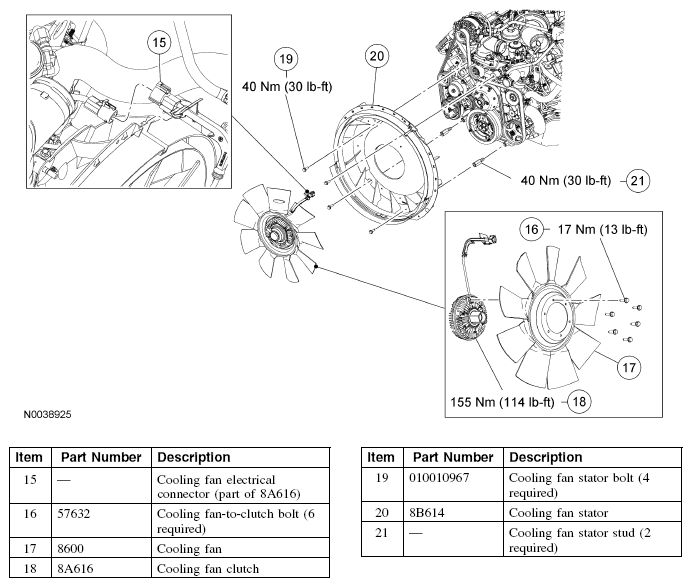

Fig 3: Exploded View Of Radiator And Cooling Fan - Diesel Engines (3 Of 3)

Courtesy of FORD MOTOR CO.
