Driveshaft - Rear, One-Piece, Rear Wheel Drive (RWD): Removal

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Index-mark the driveshaft to the transmission and the rear axle.

Vehicles with circular flange

NOTE: It may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer if a pry area is not present on the driveshaft yoke.

Fig 1: Locating 4 Flange Bolts

Courtesy of FORD MOTOR CO.

Remove and discard the 4 flange bolts.

Vehicles with rear axle split pin yoke

NOTE: It may be necessary to tap the driveshaft yoke with a plastic or rubber soft-faced hammer if a pry area is not present on the driveshaft yoke.

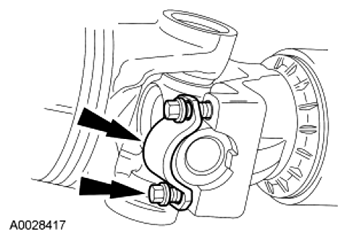

Fig 2: Locating Split Pin Bolts And U-Joint Retainer

Courtesy of FORD MOTOR CO.

Remove and discard the 4 split pin bolts and the 2 U-joint retainers.

Vehicle with transmission slip yokes

NOTE: Do not allow the output shaft to rotate while moving the driveshaft rearward.

Lower the driveshaft and slide it rearward off the transmission output shaft.
